Bottle Visual Inspection Table
Online Visual Bottle Inspection Machine used for inspecting liquid vials and bottles. It is built to GMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description

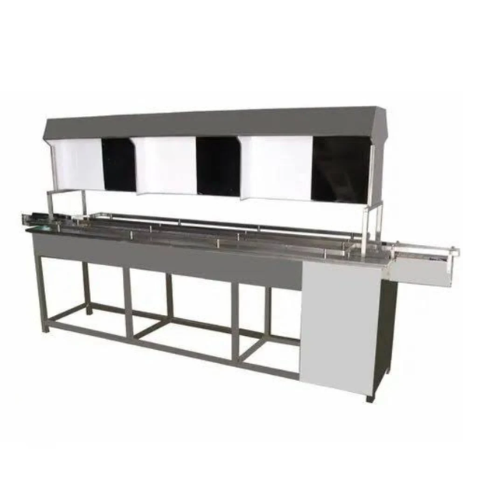

Online Visual Bottle Inspection Machine used for inspecting liquid vials and bottles. Online Vial and Bottle Inspection Machine is having application in Pharmaceutical, Biotech & Veterinary industry. This equipment consist three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving stainless steel slat chain. Structure made out of stainless steel square pipe & supported on adjustable bolts. Machine complies as per GMP standards.
Where the Bottle Visual Inspection Table fits in your production line
In a typical oral liquid bottle line, the Bottle Visual Inspection Table handles visual inspection. Before it come bottle unscrambling, bottle washing or air jet cleaning, liquid filling, screw or ROPP capping, measuring cup placement and bottle labelling.
Other models in this range
- Ampoule & Vial Inspection Machine – 1–10 ml ampoules, 2–30 ml vials
- Dry Powder Vial Inspection Machine HINS-240 – up to 200 vials/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Bottle Visual Inspection Table
- PVC black & white board as per GMP norms.
- SS elegantly matt finishing.
- Variable AC frequency variable drive for speed adjustment.
- Direct gear drive.
- Length can be made as per customer’s requirement.
- UHMW self lubrication guide below chain.
- Adjustable height of conveyor belt, to align with other machine of the line.
- Self-alignment bearing for easy maintenance.
- Rigid Vibration free Construction for trouble free performance.
Available for 2 operator seating, 4 operator seating, 6 operator seating & 8 operator seating
Frequently Asked Questions
Is the Bottle Visual Inspection Table built to pharmaceutical industry standards?
Yes — it is built to GMP standards.
