Bottle Screw / ROPP Capping Machine

Bottle Screw / ROPP Capping Machine

Harsiddh Bottle Screw / ROPP capping machine is widely acknowledged by pharmaceutical firms as having excellent features. It is available in 4 models (HCS-60R and HCS-120R, and 2 other variants); handles 10ml to 250ml; delivers a production output of from 1500 to 2500 depend on size up to 5000 to 10000 depend on size depending on model; and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

Harsiddh Bottle Screw / ROPP capping machine is widely acknowledged by pharmaceutical firms as having excellent features, functionality and high output ranging from 90 -250 bottles per minute. Our bottle screw capping machines are recognized due to their low power utilization, compactness and safety features.

The device has advanced automatic control using sensors and feedback mechanisms. It detects no bottle, no cap in chute and other anomalies in order to stop the bottle ROPP capping machine. The equipment is installed with safety devices that stop the bottle screw capper machine in case of bottle overturn, jamming or overload. It uses a single motor that moves the conveyor, star wheel and the platform turret in tandem. It also has inbuilt counter that records the number of production rates. Our bottle ROPP capper machines have CE certification.

Bottle Screw / ROPP capping machine is specially designed such that parts in contact with the atmosphere and those touching the aluminum cap are manufactured from stainless steel. It incorporates a vibrating bowl and contact parts are made to cGMP standards. The external cabinet of the machine is manufactured from high quality aluminum. Our bottle screw/ropp capping machine is designed for variability and can be used to cap various bottle sizes that range from 24 mm to 90mm diameter and 50mm to 250mm height.

Where the Bottle Screw & ROPP Capping Machine fits in your production line

In a typical oral liquid bottle line, the Bottle Screw & ROPP Capping Machine handles screw or ROPP capping. Before it come bottle unscrambling, bottle washing or air jet cleaning and liquid filling. After it come measuring cup placement, bottle labelling and visual inspection.

Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.

Features of Bottle Screw / ROPP Capping Machine

  • SS elegantly matt finished structure .
  • Single motor synchronized conveyor, star wheel & platform turret.
  • Adjustable height to aligned with other machine .
  • Sealing pressure can be varied to set different gauges and sizes of caps.
  • Specially designed cap bowl for maximum storage capacity of cap.
  • Low noise level.
  • Stainless claded and or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
  • Synchronized VFD to synchronized conveyor, star wheel and platform turret.

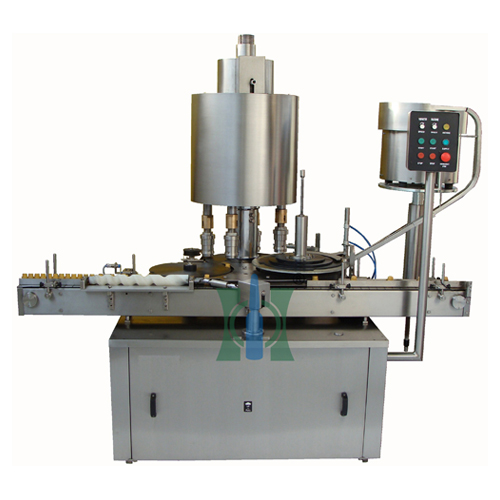

Bottle Screw ROPP Capping Machine

Bottle Screw / ROPP Capping Machine Technical Specification

Model No. HCS-60R HCS-120R HCS-150R HCS-200R
Output Per Hour 1500 to 2500 depend on size 2000 to 4000 depend on size 4000 to 7000 depend on size 5000 to 10000 depend on size
Direction of Movement Left To Right Left To Right Left To Right Left To Right
Sealing Head Single Head Four Head Six Head Eight Head
Bottle Size 10ml to 250ml 10ml to 250ml 10ml to 250ml 10ml to 250ml
Power Consumption For Main Machine – 1 H.P. / 415 V/ 3 Phase, 50Hz For Main Machine – 1 H.P. / 415 V/ 3 Phase, 50Hz For Main Machine – 1.5 H.P. / 415 V/ 3 Phase, 50Hz For Main Machine – 2 H.P. / 415 V/ 3 Phase, 50Hz
Power Consumption For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz
Conveyor Height 800 to 900 adjustable 800 to 900 adjustable 800 to 900 adjustable 800 to 900 adjustable
Cap Size Dia. 19 to 38mm
Height 15 to 25mm		 Dia. 19 to 38mm
Height 15 to 25mm		 Dia. 19 to 38mm
Height 15 to 25mm		 Dia. 19 to 38mm
Height 15 to 25mm
Container Diameter & Height Dia. 22 to 100mm & Height 50 to 250mm Dia. 22 to 100mm & Height 50 to 250mm Dia. 22 to 100mm & Height 50 to 250mm Dia. 22 to 100mm & Height 50 to 250mm
Dimensions 1200mm X 700mm X 1700mm 1550mm X 900mm X 1700mm 1700mm X 900mm X 1700mm 1800mm X 900mm X 1700mm
Weight 225 KgsApprox 285 KgsApprox 350 KgsApprox 570 KgsApprox

Video

Frequently Asked Questions

What container sizes does the Bottle Screw / ROPP Capping Machine handle?

Bottle Screw / ROPP Capping Machine's bottle Size is 10ml to 250ml.

What production output can I expect from the Bottle Screw / ROPP Capping Machine?

Output Per Hour varies by model — HCS-60R: 1500 to 2500 depend on size; HCS-120R: 2000 to 4000 depend on size; HCS-150R: 4000 to 7000 depend on size; HCS-200R: 5000 to 10000 depend on size.

What are the power requirements for the Bottle Screw / ROPP Capping Machine?

Bottle Screw / ROPP Capping Machine's power Consumption is For Main Machine – 1 H.P. / 415 V/ 3 Phase, 50Hz, For Main Machine – 1.5 H.P. / 415 V/ 3 Phase, 50Hz, or For Main Machine – 2 H.P. / 415 V/ 3 Phase, 50Hz.

What are the dimensions of the Bottle Screw / ROPP Capping Machine?

Dimensions varies by model — HCS-60R: 1200mm X 700mm X 1700mm; HCS-120R: 1550mm X 900mm X 1700mm; HCS-150R: 1700mm X 900mm X 1700mm; HCS-200R: 1800mm X 900mm X 1700mm.

How much does the Bottle Screw / ROPP Capping Machine weigh?

Weight varies by model — HCS-60R: 225 KgsApprox; HCS-120R: 285 KgsApprox; HCS-150R: 350 KgsApprox; HCS-200R: 570 KgsApprox.

What is the Conveyor Height of the Bottle Screw / ROPP Capping Machine?

Bottle Screw / ROPP Capping Machine's conveyor Height is 800 to 900 adjustable.

Is the Bottle Screw / ROPP Capping Machine built to pharmaceutical industry standards?

Yes — it is built to cGMP and CE certified standards.
