Liquid Bottle Filling And Capping Machine (Monoblock)

Harsiddh Monoblock liquid bottle filling and capping machine incorporates two packaging operations in a single stage and is therefore more economical, versatile and suitable for busy production centers. It is available in 3 models (HMBLF- 2X1 (2 Head Filling & 1 Head Capping), HMBLF-4X1 (4 Head Filling & 1 Head Capping), and HMBLF-4X4 (4 Head Filling & 4 Head Capping)); handles Dia. 28mm to 100mm (Round shape); delivers a production output of 1500 to 2000 / hour (Depend on size), 2500 to 4500 / hour (Depend on size), and 2500 to 5000 / hour (Depend on size); and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

Harsiddh Monoblock liquid bottle filling and capping machine incorporates two packaging operations in a single stage and is therefore more economical, versatile and suitable for busy production centers. They have high production output that ranges between 30 -100 bottles per minute depends on the type of model selection and can fill containers ranging from 30-1000ml.

The operation of the liquid bottle filling and capping machines starts with unscrambling of the bottles in a round turn table before they are feed to a conveyor for filling. The filling stage has nozzles with self centering devices that are plunged to container and achieve very accurate fill. Foam free filling is achieved using nozzles that rise up during the operation. Our equipments follow the international standards and have CE certification.

The equipment is assembled from high quality materials such as SS 316 for all contact parts and SS 304 for other parts. The bottle liquid filling & capping machine uses modern control technologies that implement “no bottle–no filling” and “no caps–no capping system”. In addition, the motor has variable speed control and all parts are driven by a single motor. After filling, the bottle passes to the capping section where they are sealed. Special flow meters are used to record the fluid flow while other sensors record the number of bottles.

Where the Monoblock Filling & Capping Machine fits in your production line

In a typical oral liquid bottle line, the Monoblock Filling & Capping Machine handles liquid filling. Before it come bottle unscrambling and bottle washing or air jet cleaning. After it come screw or ROPP capping, measuring cup placement, bottle labelling and visual inspection.

Other models in this range

Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.

Features of Liquid Bottle Filling and Capping Machine

  • The bottle filler and capper machine contact parts are composed of SS316 material.
  • bottle liquid filler & capper Machine is robustly made of SS 304 material.
  • Liquid filling nozzles consist of self-centralizing device.
  • Conveyor belts are made of stainless steel.
  • The controlled nozzles assure foam less liquid filling.
  • Equipped with in feed and out feed for bottles.
  • Variable AC drives to allow speed adjustments.
  • Consumes less power and cost.
  • Negligible chance of external dust or particles since bottles do not travel between filling and sealing.
  • cGMP model
  • Left to right direction
  • No Bottle No Filling Machine stop system
  • Single platform structure both for filling and capping that reduce the space
  • Unbending trembling free structure for trouble free performance
  • Stainless Steel gracefully matt finish body
  • Direction type vibrating bowl for caps
  • Minimum change over time
  • Smooth and Noise free conveying
  • Bottle stopping arrangement through pneumatic as well as mechanical systems
  • Separately VFD drive for un-scrambler, machine main and conveyor motor

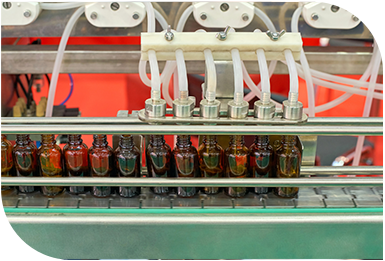

Liquid Bottle Filling and Capping Machine

Liquid Bottle Filling and Capping Machine Technical Specification

Model No. HMBLF- 2X1 (2 Head Filling & 1 Head Capping) HMBLF-4X1 (4 Head Filling & 1 Head Capping) HMBLF-4X4 (4 Head Filling & 4 Head Capping)
Filling type Volumetric Piston Pump Volumetric Piston Pump Volumetric Piston Pump
Output Per Hour 1500 to 2000 / hour (Depend on size) 2500 to 4500 / hour (Depend on size) 2500 to 5000 / hour (Depend on size)
Direction of Movement Left To Right Left To Right Left To Right
No. Of Filling Head Syringe / Pump Two Four Four
No. Of Capping Head One One Four
Filling Size 10ml to 1000ml 10ml to 1000ml 10ml to 1000ml
Power Consumption For Main Machine – 2 H.P. / 415 V/ 3 Phase, 50Hz For Main Machine – 3 H.P. / 415 V/ 3 Phase, 50Hz For Main Machine – 4 H.P. / 415 V/ 3 Phase, 50Hz
  For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz For Conveyor – 0.25 H.P. / 415 V/ 3 Phase, 50Hz
Conveyor Height 800 to 900 adjustable 800 to 900 adjustable 800 to 900 adjustable
Container Dia. Dia. 28mm to 100mm (Round shape) Dia. 28mm to 100mm (Round shape) Dia. 28mm to 100mm (Round shape)
Container Height 50mm to 250mm 50mm to 250mm 50mm to 250mm
Dimensions 2450mm X 1000mm 2700mm X 1000mm 3250mm X 1000mm
Weight 750 Kgs 850 Kgs 1550 Kgs

Video

Frequently Asked Questions

What container sizes does the Liquid Bottle Filling And Capping Machine (Monoblock) handle?

Liquid Bottle Filling And Capping Machine (Monoblock)'s container Dia. is Dia. 28mm to 100mm (Round shape).

What production output can I expect from the Liquid Bottle Filling And Capping Machine (Monoblock)?

Output Per Hour varies by model — HMBLF- 2X1 (2 Head Filling & 1 Head Capping): 1500 to 2000 / hour (Depend on size); HMBLF-4X1 (4 Head Filling & 1 Head Capping): 2500 to 4500 / hour (Depend on size); HMBLF-4X4 (4 Head Filling & 4 Head Capping): 2500 to 5000 / hour (Depend on size).

What are the power requirements for the Liquid Bottle Filling And Capping Machine (Monoblock)?

Power Consumption varies by model — HMBLF- 2X1 (2 Head Filling & 1 Head Capping): For Main Machine – 2 H.P. / 415 V/ 3 Phase, 50Hz; HMBLF-4X1 (4 Head Filling & 1 Head Capping): For Main Machine – 3 H.P. / 415 V/ 3 Phase, 50Hz; HMBLF-4X4 (4 Head Filling & 4 Head Capping): For Main Machine – 4 H.P. / 415 V/ 3 Phase, 50Hz.

What are the dimensions of the Liquid Bottle Filling And Capping Machine (Monoblock)?

Dimensions varies by model — HMBLF- 2X1 (2 Head Filling & 1 Head Capping): 2450mm X 1000mm; HMBLF-4X1 (4 Head Filling & 1 Head Capping): 2700mm X 1000mm; HMBLF-4X4 (4 Head Filling & 4 Head Capping): 3250mm X 1000mm.

How much does the Liquid Bottle Filling And Capping Machine (Monoblock) weigh?

Weight varies by model — HMBLF- 2X1 (2 Head Filling & 1 Head Capping): 750 Kgs; HMBLF-4X1 (4 Head Filling & 1 Head Capping): 850 Kgs; HMBLF-4X4 (4 Head Filling & 4 Head Capping): 1550 Kgs.

What is the Filling Size of the Liquid Bottle Filling And Capping Machine (Monoblock)?

Liquid Bottle Filling And Capping Machine (Monoblock)'s filling Size is 10ml to 1000ml.

Is the Liquid Bottle Filling And Capping Machine (Monoblock) built to pharmaceutical industry standards?

Yes — it is built to cGMP and CE certified standards.
