Lug Capping Machine

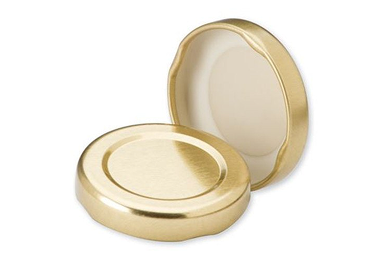

The Lug Capping Machine is a specialized capping solution designed for sealing lug or twist-off caps on glass and plastic bottles with consistent torque and perfect tightness. It handles 10 ml to 1000 ml; delivers a production output of 60 to 120 Bottles / Minute; and is built to GMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
The Lug Capping Machine is a specialized capping solution designed for sealing lug or twist-off caps on glass and plastic bottles with consistent torque and perfect tightness. Commonly used in food, beverage, pharmaceutical, and chemical industries, this machine ensures safe, leak-proof, and tamper-evident packaging for products such as jams, sauces, pickles, honey, juices, and other liquid or semi-solid items. Built with a robust stainless-steel structure and GMP-compliant design, the machine guarantees hygienic operation and long-term durability. Bottles are automatically fed through the conveyor, precisely positioned under the capping head, and sealed using a mechanical or pneumatic torque system that ensures proper thread engagement and vacuum sealing when required.
Features of Lug Capping Machine
- The machine is manufactured or developed as per GMP standards.
- The main frame structure is made from SS 304.
- Rigid vibration-free construction for trouble-free performance.
- SS Elegantly matt finished body.
- SS cladding or electroless nickel plating of all exposed parts to ensure long life and resistance against corrosion.
- Single motor synchronizes conveyor, star wheel, & platform turret.
- Adjustable height of the conveyor belt to align with other machines of the line.
- Specially designed vibratory bowl and chute with no cap sensors for the continuous flow of the cap.
- No cap on the chute vibrator & Machine stops.
- No bottles – Machine Stop.
- Low noise level, low power consumption.
- Capping head with chuck system.
- Fix the set pin for the star plate.
- The chute will have rigid mounting & cap pickup arrangement from SS material.
- Mechanical stopper to stop incoming bottles.
- Self-lubricating UHMW-PE guide profile for low friction wear surface, smooth and noiseless conveying.
- Star wheel & Guide MOC: UHMW nylon.
- Adjustable bottle height gauge for easy and quick setting.
Lug Capping Machine Technical Specification
| Model No. | HLC-100 |
|---|---|
| Bottle Types | Round Glass Bottles & Round Glass Jars |
| Bottle Sizes | 10 ml to 1000 ml |
| Output / Speed | 60 to 120 Bottles / Minute |
| Cap Sizes | As per customer samples |
| Cap Feeding Systems | Through Vibratory bowl & chute |
| Capping Type / Head | Lug Capping |
| Direction of Movement | Left to right |
| No. of Capping Head | As per customer requirements |
| Power | 230V, 1 Phase, 50Hz |
| Conveyor Height | 850 to 900 mm (adjustable) |
| Dimensions | 1550 mm (L) x 850 mm (W) x 1800 mm (H) |
Frequently Asked Questions
What container sizes does the Lug Capping Machine handle?
Lug Capping Machine's bottle Sizes is 10 ml to 1000 ml.
What production output can I expect from the Lug Capping Machine?
Lug Capping Machine's output / Speed is 60 to 120 Bottles / Minute.
What are the power requirements for the Lug Capping Machine?
Lug Capping Machine's power is 230V, 1 Phase, 50Hz.
What are the dimensions of the Lug Capping Machine?
Lug Capping Machine's dimensions is 1550 mm (L) x 850 mm (W) x 1800 mm (H).
What is the Conveyor Height of the Lug Capping Machine?
Lug Capping Machine's conveyor Height is 850 to 900 mm (adjustable).
Is the Lug Capping Machine built to pharmaceutical industry standards?
Yes — it is built to GMP standards.
