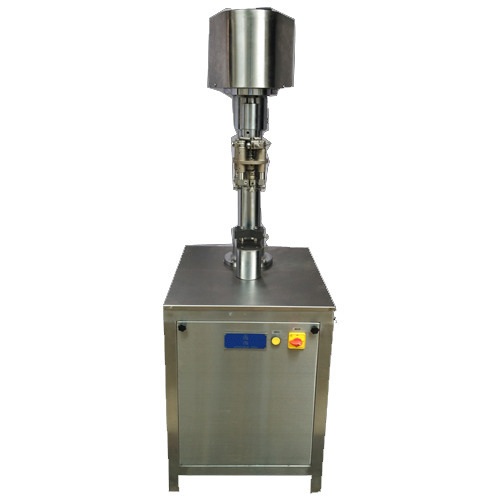

Semi-Automatic Screw Capping Machine
Semi-Automatic Screw Capping Machine is suitable for designed for sealing different kinds and shapes of bottles with an output capacity of up to 40 containers per minute depending on container dimensions and cap style. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Semi-Automatic Screw Capping Machine is suitable for designed for sealing different kinds and shapes of bottles with an output capacity of up to 40 containers per minute depending on container dimensions and cap style. Machine compatible with PP caps, ROPP aluminum closures, or plastic threaded cap using interchangeable parts or capping heads. The machine ideally suited for small to medium production facilities. Semi-automatic Screw Capper with integrated table/stand for smooth operation.
Features of Semi-Automatic Screw Capping Machine
- Compact machine model & multipurpose use.
- Bottle and cap put manually.
- Machine construction in SS304 material.
- Suitable for all type of PP Cap, Plastic Screw Cap.
- Heavy Duty Machine structure.
- Low noise & Less power consumption.
- Cap Sealing Pressure varied according to different size of caps.
- Adjustable gauge provided for different height of bottles.
Semi-Automatic Screw Capping Machine Technical Specification
| Model No. | HSC-S-50 |
|---|---|
| Product Diameter | 25 mm to 85 mm |
| Cap Type | Screw type cap |
| No. of Head | One |
| Product Height | 250 mm |
| Power | 1.0 H.P. |
| Electrical | 230V, 1 Phase, 50 Hz with VFD |
| Speed | 40 / minute (Depend on size) |
| Overall Dimension | 600 mm x 600 mm x 1400 mm |
| Net Weight | 125 Kgs |
| Gross Weight | 210 Kgs |
Frequently Asked Questions
What production output can I expect from the Semi-Automatic Screw Capping Machine?
Semi-Automatic Screw Capping Machine's speed is 40 / minute (Depend on size).
What are the power requirements for the Semi-Automatic Screw Capping Machine?
Semi-Automatic Screw Capping Machine's power is 1.0 H.P.
What are the dimensions of the Semi-Automatic Screw Capping Machine?
Semi-Automatic Screw Capping Machine's overall Dimension is 600 mm x 600 mm x 1400 mm.
How much does the Semi-Automatic Screw Capping Machine weigh?
Semi-Automatic Screw Capping Machine's net Weight is 125 Kgs.
What is the Product Diameter of the Semi-Automatic Screw Capping Machine?
Semi-Automatic Screw Capping Machine's product Diameter is 25 mm to 85 mm.
What is the Product Height of the Semi-Automatic Screw Capping Machine?
Semi-Automatic Screw Capping Machine's product Height is 250 mm.
