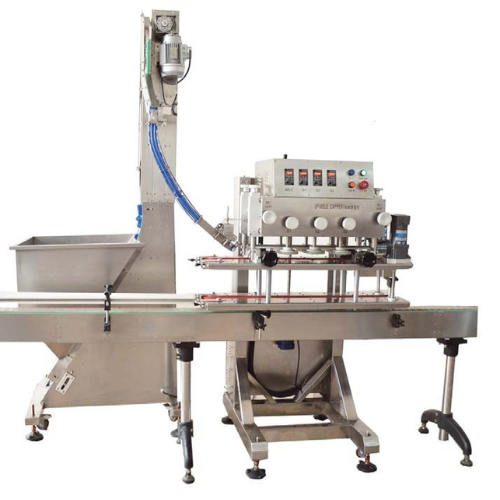

Linear Capping Machine

Linear Capping Machine

The Linear Bottle Capping Machine is an advanced, high-performance solution designed to deliver precise and reliable capping for bottles of various shapes and sizes. It handles Diameter Up to 100 mm for round bottles & other shape bottle; and is built to GMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

The Linear Bottle Capping Machine is an advanced, high-performance solution designed to deliver precise and reliable capping for bottles of various shapes and sizes. Built with a robust stainless-steel frame and GMP-compliant design, this machine is ideal for industries such as pharmaceuticals, food & beverages, cosmetics, agrochemicals, and lubricants, where accuracy, hygiene, and productivity are critical. This linear capping machine having special design that no change parts required for different diameters of bottles / jars.

The Automatic linear bottle capping machine is one of consistency, reliability, and security, and its largest benefits are included in the fact that it provides a repeatable action provision. This versatility offered by the machine can increase the number of bottles that can be sealed during the production activity. A well-maintained automatic linear capping machine takes care of the speed as well as the consistency in sealing. The unique feature of this capper is that it can integrate easily with any packaging line and eliminate any loss of product. It makes business and production a pleasurable experience and can be custom-built as per needs. Efficiency and productivity along with reduced costs along the entire packaging process make it a delightful buy.

Features of Linear Capping Machine

  • Auto Stop System For No Bottle/Cap Situation.
  • Constructed in Stainless Steel Finish.
  • No Change Parts System for changes in Bottle Size.
  • Single Drive Synchronized Complete Operation (Bottle Feeding, Holding Belt and Pressing Belt System).
  • Cap Feeder with Varying Speed System.
  • Minimum Change Over time.
  • Minimum Setting time.
  • Complete dismantling of Hopper for easy cleaning.

Linear Capping Machine Technical Specification

Model HLC-100
Bottle Size Diameter Up to 100 mm for round bottles & other shape bottle
Bottle Height 300 mm Maximum
Cap Size As per customer size
Electrical 415 V, 3 Phase Or 220 V, 1 Phase, 50 Hz
Power 2.0 H.P.
Conveyor Height 850-900 mm adjustable
Overall Dimensions 1850 mm (L) x 900 mm (W) x 1875 mm (H)
Net Weight 475 Kgs

Frequently Asked Questions

What container sizes does the Linear Capping Machine handle?

Linear Capping Machine's bottle Size is Diameter Up to 100 mm for round bottles & other shape bottle.

What are the power requirements for the Linear Capping Machine?

Linear Capping Machine's electrical is 415 V, 3 Phase Or 220 V, 1 Phase, 50 Hz.

What are the dimensions of the Linear Capping Machine?

Linear Capping Machine's overall Dimensions is 1850 mm (L) x 900 mm (W) x 1875 mm (H).

How much does the Linear Capping Machine weigh?

Linear Capping Machine's net Weight is 475 Kgs.

What is the Bottle Height of the Linear Capping Machine?

Linear Capping Machine's bottle Height is 300 mm Maximum.

What is the Conveyor Height of the Linear Capping Machine?

Linear Capping Machine's conveyor Height is 850-900 mm adjustable.

Is the Linear Capping Machine built to pharmaceutical industry standards?

Yes — it is built to GMP standards.
