Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine
Harsiddh Four Head Onion Skin Tube Filling and Sealing Machine is highly featured with advanced technology. It delivers a production output of 60 to 90 Tubes / Minute (Depend on ampoules sizes); holds +1% accuracy; and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description

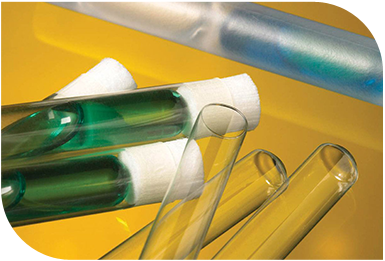

Harsiddh Four Head Onion Skin Tube Filling and Sealing Machine is highly featured with advanced technology to fill and seal the onion skin tubes with precise accuracy of ± 1%. The operation carried out tube filler and sealer machinery is quite compact and designed for vibration free execution. All the tube filling & sealing machine parts are manufactured with high end Stainless Steel including the contact parts especially made up of SS 316 and non-contact parts are of SS304. It is best buy for crushable ampoules and biological indicators with the size diameter ranging from 6mm to 15mm and length can be customized anywhere between 55mm to 100mm. Our filling and sealing machines have CE certifications.
The entire operation of filling and sealing of onion skin tubes are without human touch to avoid contamination of the precious liquid material. In the absence of Ampoules, machine automatically stops the process and saves electric consumption as well the costly materials being wastage. The main application of this is found in Chemical industries. The production can be significantly increased with the four head filler and sealer to achieve up to 90 tubes per minute.
Operational Process:-
The indicator ampoule in tray is directly loaded in to SS hopper in machine. Well synced star wheels moves the tubes symmetrically for sequentially pre-gassing, filling, post gassing, pre-heating and sealing.
Where the 4 Head OST Filling & Sealing HFS-4 OST fits in your production line
In a typical onion skin tube line, the 4 Head OST Filling & Sealing HFS-4 OST handles filling and sealing. After it come visual inspection.
Other models in this range
- Single Head OST Filling & Sealing HFS-30 OST – 0.5–5 ml doses
- 8 Head OST Filling & Sealing – up to 200 tubes/min
- 6 Head OST Filling & Sealing – up to 140 tubes/min
- 2 Head OST Filling & Sealing – 20–40 tubes/min
- Inner Plug Pressing Machine – HIPP-100, up to 120 bottles/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Tube Filling and Sealing Machine
- cGMP model (Off-line).
- Compact and vibration free structure.
- All Contact parts made from Stainless Steel AISI 316 material.
- Other parts (non-contact) made from Stainless Steel AISI 304, Mild Steel, Brass etc.
- Stainless Steel AISI 316 Dosing Syringes and Filling Needles..
- Single motor synchronized all drives of the unit..
- Smooth ampoule rotating unit at the sealing station.
- Pre & Post nitrogen flushing unit..
- Pre Heating unit available for thick glass ampoules.
- Flow meters for Nitrogen, LPG and Oxygen gas regulation easier.
- No Ampoule No Filling” function avoid consumption of expensive liquids.
- Minimum time to change over ampoule size.
- Variable frequency drive for regulating machine speed easier through speed pot.
- Vertical tray collection unit duly filled and sealed ampoules.
- Stainless Steel waste tips collector for cutting the glass ampoules tips while sealing.
- Suitable for all open mouth glass ampoules.
Four Head Onion Skin Tube Filler & Sealer Machine Technical Specification
| Model No. | HFS-4 OST (Suitable For Onion Skin Tubes / Crushable Ampoules / Biological Indicator) |
|---|---|
| No. Of Head | Four |
| Size Of Onion Skin Tubes / Crushable Ampoules / Biological Indicators | Dia. 6mm to 15mm Length – 55mm to 100mm Or as per customer size |
| Filling Capacity | From 0.5ml to 5ml in single dose |
| Filling Type | Piston Pumps Type Filling (Volumetric) |
| Filling accuracy | +1% |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) |
| Filling Head | Four |
| Sealing Nozzle | Four |
| Output / Minute | 60 to 90 Tubes / Minute (Depend on ampoules sizes) |
| Require Gases For Sealing | LPG & Oxygen (Mixture) |
| Require Gases For Opening | LPG & Oxygen (Mixture) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available |
| Power Require | 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised |
| Over All Dimensions | 1050mm (L) X 800mm (W) X 1000mm (H) |
| Net Weight | 285 Kgs. |
| Gross Weight (With Wooden Case) | 460 Kgs. |
Video
Frequently Asked Questions
How accurate is the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's filling accuracy is +1%.
What materials are the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's contact parts made from?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).
What production output can I expect from the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's filling Capacity is From 0.5ml to 5ml in single dose.
What are the power requirements for the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's power Require is 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.
What are the dimensions of the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's over All Dimensions is 1050mm (L) X 800mm (W) X 1000mm (H).
How much does the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine weigh?
Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine's net Weight is 285 Kgs.
Is the Tube Filling and Sealing Machine – Four Head Onion Skin Tube Filler and Sealer Machine built to pharmaceutical industry standards?
Yes — it is built to cGMP and CE certified standards.
