Two Head Onion Skin Tube (OST) Filling and Sealing Machine

Two Head Onion Skin Tube (OST) Filling and Sealing Machine

Description

Two Head Onion Skin Tube Filling and Sealing Machine is able to fill and seal Onion Skin Tubes (OST) or Biological Indicator having the capacity of 1ml to 20ml. It has the filling capacity of 0.5ml to 20ml in just a single dose. Two Head OST Tube Filler & Sealer Machine when functions on the principle of volumetric piston pump type fillings, it can fill 20 to 40 Onion Skin Tubes. This equipment has the availability of the sleep – tray. Oxygen and LPG gases are used to fill and seal the ampoules. The manufacture of OST Filling & Sealing Machine includes stainless steel AISI 316 for contact parts; stainless steel AISI 304, mild steel, brass etc. for non-contact parts; and stainless steel AISI 316 for dosing syringes and filling needles.

Features of Two Head Onion Skin Tube (OST) Filling and Sealing Machine

  • cGMP model (Off-line).
  • Compact and vibration free structure.
  • All Contact parts made from Stainless Steel AISI 316 material.
  • Other parts (non-contact) made from Stainless Steel AISI 304, Mild Steel, Brass etc.
  • Stainless Steel AISI 316 Dosing Syringes and Filling Needles..
  • Single motor synchronized all drives of the unit..
  • Smooth ampoule rotating unit at the sealing station.
  • Pre & Post nitrogen flushing unit..
  • Pre Heating unit available for thick glass ampoules.
  • Flow meters for Nitrogen, LPG and Oxygen gas regulation easier.
  • No Ampoule No Filling” function avoid consumption of expensive liquids.
  • Minimum time to change over ampoule size.
  • Variable frequency drive for regulating machine speed easier through speed pot.
  • Vertical tray collection unit duly filled and sealed ampoules.
  • Stainless Steel west tips collector for cutting the glass ampoules tips while sealing.
  • Suitable for all open mouth glass ampoules.

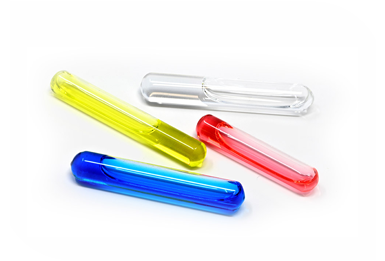

Two Head Onion Skin Tube Filling and Sealing Machine

Two Head Onion Skin Tube (OST) Filling and Sealing Machine Technical Specification

Model No. HFS-4 OST (Suitable For Onion Skin Tubes / Crushable Ampoules / Biological Indicator)
No. Of Head Four
Size Of Onion Skin Tubes / Crushable Ampoules / Biological Indicators Dia. 6mm to 15mm
Length – 55mm to 100mm Or as per customer size
Filling Capacity From 0.5ml to 5ml in single dose
Filling Type Piston Pumps Type Filling (Volumetric)
Filling accuracy +1%
Contact Parts Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump)
Filling Head Four
Sealing Nozzle Four
Output / Minute 60 to 90 Tubes / Minute (Depend on ampoules sizes)

Require Gases For Sealing LPG & Oxygen (Mixture)
Require Gases For Opening LPG & Oxygen (Mixture)
Nitrogen Purging Available (Pre & Post)
Pre Heating Available
Power Require 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR
1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised
Over All Dimensions 1050mm (L) X 800mm (W) X 1000mm (H)
Net Weight 285 Kgs.
Gross Weight (With Wooden Case) 460 Kgs.
Onion Skin Tube Filling and Sealing Machine
