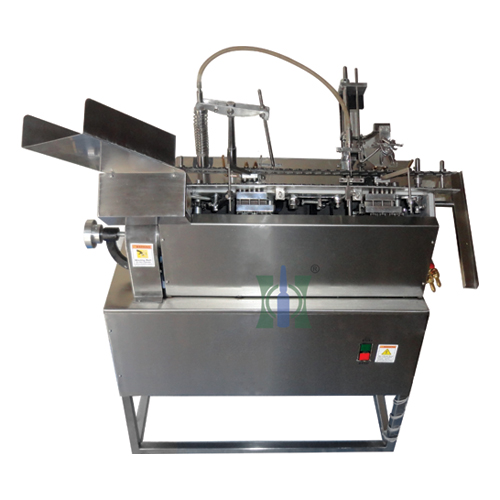

Ampoule Filling And Sealing Machine (Single Head Closed)
Harsiddh Unimach Pvt Ltd offers high-quality Single Head Closed Ampoule Filling and Sealing Machine with single motor customization features. It handles 1ml to 25ml Closed / D Type Glass Ampoules; delivers a production output of 10 to 15 Ampoules / Minute (Depend on ampoules sizes); and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Unimach Pvt Ltd offers high-quality Single Head Closed Ampoule Filling and Sealing Machine with single motor customization features. The device also contains a post and pre- nitrogen flushing unit enhancing its functioning. Thanks to the pre-heating unit available with the instrument that offers perfect heating for thick glass ampoules. The equipment also features a sleep tray that helps in the classification of sealed and filled ampoules. You can use this filling and sealing tool for all kinds of open-mouth glass ampoules.
With a gross weight of almost 70 kilograms, this particular equipment features a delicate and highly functional ampoule rotating unit. Capable of filling 10 to 15 ampoules per minute, Ampoule Filling Machine possesses a filling capacity of 0.5ml to 25ml per dose. This commercial-grade machinery has a single ampoule-opening nozzle and operates on a volumetric filling mechanism. Additionally, almost all the contact parts of the following equipment are constructed from AISI 316-grade stainless steel, thus imparting strength to this sealing and filling tool. Our ampoule filler and sealer machines have CE certifications.
The equipment also possesses a stainless steel west-tip collector making it the perfect option for injection preparation. The ampoule filler sealer machine offers superior functioning in the sterilized environments of the pharmaceutical industries as well as in the preparation of cosmetics and chemicals.
Where the Single Head Closed Ampoule Filling & Sealing HFS-30C fits in your production line
In a typical closed ampoule line, the Single Head Closed Ampoule Filling & Sealing HFS-30C handles opening, filling and sealing. After it come visual inspection and ampoule labelling.
Other models in this range
- 6 Head Closed Ampoule Filling & Sealing HFS-6C – 80–150 ampoules/min
- 4 Head Closed Ampoule Filling & Sealing HFS-4C – 60–90 ampoules/min
- 2 Head Closed Ampoule Filling & Sealing – 20–40 ampoules/min
- 8 Head Closed Ampoule Filling & Sealing – 120–200 ampoules/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Ampoule Filling and Sealing Machine
- Compact cGMP model.
- All contact parts are made from stainless steel AISI 316 material.
- Single motor customized with all drives of the unit.
- A delicate ampoule rotating unit attached at the ampoule opening and sealing station.
- Pre & Post nitrogen flushing unit.
- Pre heating unit for thick glass ampoules.
- Minimum change over the ampoule size.
- Sloping tray for diverting filled and sealed ampoules.
- Waste tips collector made with the high quality stainless steel.
- Appropriate for all open mouth glass ampoules.
Ampoule Filling and Sealing Machine Technical Specification
| Model No. | HFS-30 C |
|---|---|
| Ampoule Sizes | 1ml to 25ml Closed / D Type Glass Ampoules |
| Filling Capacity | From 0.5ml to 25ml in single dose |
| Filling Type | Piston Pumps Type Filling (Volumetric) |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) |
| Output / Minute | 10 to 15 Ampoules / Minute (Depend on ampoules sizes) |
| Ampoule Opening Nozzles | One |
| Sealing Nozzle | One For Pre Heating & One for Sealing |
| Require Gases For Sealing | LPG & Oxygen (Mixture) |
| Require Gases For Opening | LPG & Oxygen (Mixture) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available |
| Power Require | 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) |
| Over All Dimensions | 750mm (L) X 500mm (W) X 1000mm (H) |
| Net Weight | 70 Kgs. |
| Gross Weight (With Wooden Case) | 180 Kgs. |
Video
Frequently Asked Questions
What container sizes does the Ampoule Filling And Sealing Machine (Single Head Closed) handle?
Ampoule Filling And Sealing Machine (Single Head Closed)'s ampoule Sizes is 1ml to 25ml Closed / D Type Glass Ampoules.
What materials are the Ampoule Filling And Sealing Machine (Single Head Closed)'s contact parts made from?
Ampoule Filling And Sealing Machine (Single Head Closed)'s contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).
What production output can I expect from the Ampoule Filling And Sealing Machine (Single Head Closed)?
Ampoule Filling And Sealing Machine (Single Head Closed)'s filling Capacity is From 0.5ml to 25ml in single dose.
What are the power requirements for the Ampoule Filling And Sealing Machine (Single Head Closed)?
Ampoule Filling And Sealing Machine (Single Head Closed)'s power Require is 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems).
What are the dimensions of the Ampoule Filling And Sealing Machine (Single Head Closed)?
Ampoule Filling And Sealing Machine (Single Head Closed)'s over All Dimensions is 750mm (L) X 500mm (W) X 1000mm (H).
How much does the Ampoule Filling And Sealing Machine (Single Head Closed) weigh?
Ampoule Filling And Sealing Machine (Single Head Closed)'s net Weight is 70 Kgs.
Is the Ampoule Filling And Sealing Machine (Single Head Closed) built to pharmaceutical industry standards?
Yes — it is built to cGMP and CE certified standards.
