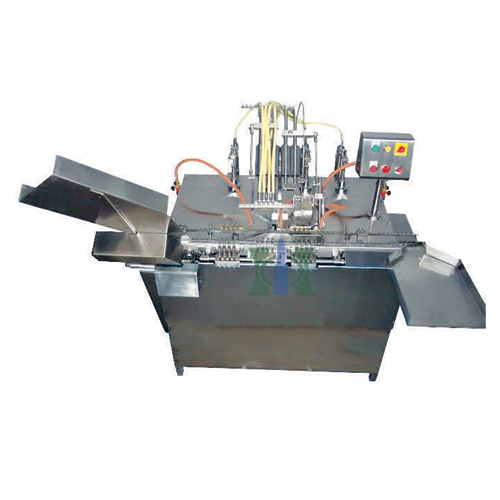

Four Head Closed Ampoule Filling and Sealing Machine
Harsiddh Unimach Pvt Ltd offers the best quality four head closed ampoule filling and sealing machine that works on ampoule’s incline drive principle in which closed mouth ampoules open up. It handles 1ml to 5ml Closed / D Type Glass Ampoules; delivers a production output of 60 to 90 Ampoules / Minute (Depend on ampoules sizes); and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Unimach Pvt Ltd offers the best quality four head closed ampoule filling and sealing machine that works on ampoule’s incline drive principle in which closed mouth ampoules open up, filling and sealing takes place to care of wide aberration. Heavy plated machine covered with SS cover and matt/dull finishing. There is a big gap at the bottom of the ampoule filler sealer machine for easy cleaning. The electrical control panel is placed on the top of the machine for easy start up, execution and protection. Our ampoule filling and sealing machines have CE certifications.
It is new generation ampoule filling sealing machinery that opens, fills and seals the ampoules with nitrogen pre and post flushing with easy adoptability to the rectangular feeding that avoids the ampoule breakage. The instrument defined for complex process with easy execution to fill and seal 1ml to 10ml ampoules with closed mouth. It is highly efficient to handle 60 to 90 D type glass ampoules per minute. Though the output productivity is based on the sizes of ampoules, equipped with four sealing nozzle for pre-heating. Thick glass ampoules needs pre heating requisite for sealing. The greatest benefit of Ampoule Filling And Sealing Machine is less change over time, the parts made of quality Stainless steel.
This one is the most suitable device to fill and pack pre-washed or pre-sterilized closed ampoules probably used in foreign countries, where it requires high sterile and hygienic standards to be followed in vaccines and human consumption liquids are used to pack.
Where the 4 Head Closed Ampoule Filling & Sealing HFS-4C fits in your production line
In a typical closed ampoule line, the 4 Head Closed Ampoule Filling & Sealing HFS-4C handles opening, filling and sealing. After it come visual inspection and ampoule labelling.
Other models in this range
- 6 Head Closed Ampoule Filling & Sealing HFS-6C – 80–150 ampoules/min
- Single Head Closed Ampoule Filling & Sealing HFS-30C – 10–15 ampoules/min
- 2 Head Closed Ampoule Filling & Sealing – 20–40 ampoules/min
- 8 Head Closed Ampoule Filling & Sealing – 120–200 ampoules/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Four Head Closed Ampoule Filling and Sealing Machine
- compact cGMP model .
- All contact parts are made from stainless steel AISI 316 material.
- single motor customized with all drives of the unit.
- A delicate ampoule rotating unit attached at the ampoule opening and sealing station.
- Pre & Post nitrogen flushing unit.
- Pre heating unit for thick glass ampoules.
- Minimum change over the ampoule size.
- Sloping tray for diverting filled and sealed ampoules.
- Waste tips collector made with the high quality stainless steel.
- Appropriate for all open mouth glass ampoules.
Four Head Closed Ampoule Filling and Sealing Machine Technical Specification
| Model No. | HFS-4 C |
|---|---|
| Ampoule Sizes | 1ml to 5ml Closed / D Type Glass Ampoules |
| Filling Capacity | From 0.5ml to 5ml in single dose |
| Filling Type | Piston Pumps Type Filling (Volumetric) |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) |
| Output / Minute | 60 to 90 Ampoules / Minute (Depend on ampoules sizes) |
| Ampoule Opening Nozzles | Four |
| Sealing Nozzle | Four For Pre Heating & Four for Sealing |
| Require Gases For Sealing | LPG & Oxygen (Mixture) |
| Require Gases For Opening | LPG & Oxygen (Mixture) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available |
| Power Require | 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised |
| Over All Dimensions | 1250mm (L) X 800mm (W) X 1000mm (H) |
| Net Weight | 320 Kgs. |
| Gross Weight (With Wooden Case) | 490 Kgs. |
Video
Frequently Asked Questions
What container sizes does the Four Head Closed Ampoule Filling and Sealing Machine handle?
Four Head Closed Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 5ml Closed / D Type Glass Ampoules.
What materials are the Four Head Closed Ampoule Filling and Sealing Machine's contact parts made from?
Four Head Closed Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).
What production output can I expect from the Four Head Closed Ampoule Filling and Sealing Machine?
Four Head Closed Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 5ml in single dose.
What are the power requirements for the Four Head Closed Ampoule Filling and Sealing Machine?
Four Head Closed Ampoule Filling and Sealing Machine's power Require is 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.
What are the dimensions of the Four Head Closed Ampoule Filling and Sealing Machine?
Four Head Closed Ampoule Filling and Sealing Machine's over All Dimensions is 1250mm (L) X 800mm (W) X 1000mm (H).
How much does the Four Head Closed Ampoule Filling and Sealing Machine weigh?
Four Head Closed Ampoule Filling and Sealing Machine's net Weight is 320 Kgs.
Is the Four Head Closed Ampoule Filling and Sealing Machine built to pharmaceutical industry standards?
Yes — it is built to cGMP and CE certified standards.
