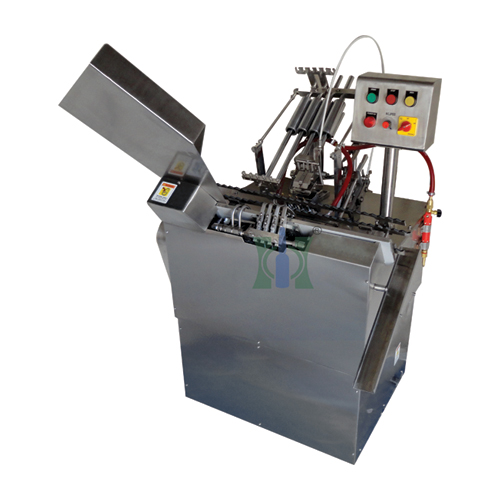

Two Head Closed Ampoule Filling and Sealing Machine
Description
Two Head Closed Ampoule Filling and Sealing Machine has the specification of single motor customization. This equipment has the capacity to fill 20 to 40 ampoules in a minute and it is capable of filling 0.5ml to 25ml per dose. Our Two Head Closed Ampoules Filling & Sealing Machine is highly strong because the material used for its construction is AISI-316 grade stainless steel. This machine also has a good quality west tip collector which makes the equipment more reliable to prepare injections. It contains pre and post nitrogen flushing unit which helps to avoid contamination and it also has a pre heating unit for the ampoules with thick glass. This Ampoules Closed Filling & Sealing Machine has a gross weight of about 135 kilograms
Features of Two Head Closed Ampoule Filling and Sealing Machine
- compact cGMP model .
- All contact parts are made from stainless steel AISI 316 material.
- single motor customized with all drives of the unit.
- A delicate ampoule rotating unit attached at the ampoule opening and sealing station.
- Pre & Post nitrogen flushing unit.
- Pre heating unit for thick glass ampoules.
- Minimum change over the ampoule size.
- sleepy tray for diversion of filled and sealed ampoules.
- West tips collector made with the high quality stainless steal.
- Appropriate for all open mouth glass ampoules.
Two Head Closed Ampoule Filling and Sealing Machine Technical Specification
| Model No. | HFS-4 C |
|---|---|
| Ampoule Sizes | 1ml to 5ml Closed / D Type Glass Ampoules |
| Filling Capacity | From 0.5ml to 5ml in single dose |
| Filling Type | Piston Pumps Type Filling (Volumetric) |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) |
| Output / Minute | 60 to 90 Ampoules / Minute (Depend on ampoules sizes) |
| Ampoule Opening Nozzles | Four |
| Sealing Nozzle | Four For Pre Heating & Four for Sealing |
| Require Gases For Sealing | LPG & Oxygen (Mixture) |
| Require Gases For Opening | LPG & Oxygen (Mixture) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available |
| Power Require | 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised |
| Over All Dimensions | 1250mm (L) X 800mm (W) X 1000mm (H) |
| Net Weight | 320 Kgs. |
| Gross Weight (With Wooden Case) | 490 Kgs. |
