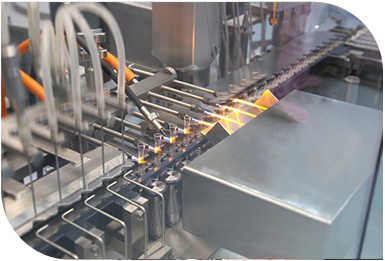

Eight Head Closed Ampoule Filling and Sealing Machine
The Eight Head Closed Ampoule Filling and Sealing Machine opens, fills and seals closed / D type glass ampoules, filling 0.5ml to 10ml per dose at 120 to 200 ampoules per minute. It has AISI 316L contact parts, a No Ampoule No Filling system and pre & post nitrogen flushing. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Eight Head Closed Ampoule Filling and Sealing Machine is the machine which is designed and used to open the closed ampoules in order to fill and seal them. It is also known as “Closed Neck Ampoule Filler and Sealer” and “Ampoule Drawing, Filling and Closing Equipment”. The equipment uses “No Ampoule No Filling” feature and hence the liquid wastage is avoided. Ampoule Filling Machine for closed ampoules is highly durable and strong as it uses Stainless Steel AISI 316L material for manufacturing the contact parts while it uses Stainless Steel AISI 304 for constructing the non-contact parts. Six Head Closed Ampoule Filler and Sealer Machine is able to process 120 to 200 Ampoules per minute. The filling capacity of this machine for all the D Type Glass Ampoules is 0.5ml to 10ml in a single dose.
Where the 8 Head Closed Ampoule Filling & Sealing fits in your production line
In a typical closed ampoule line, the 8 Head Closed Ampoule Filling & Sealing handles opening, filling and sealing. After it come visual inspection and ampoule labelling.
Other models in this range
- 6 Head Closed Ampoule Filling & Sealing HFS-6C – 80–150 ampoules/min
- 4 Head Closed Ampoule Filling & Sealing HFS-4C – 60–90 ampoules/min
- Single Head Closed Ampoule Filling & Sealing HFS-30C – 10–15 ampoules/min
- 2 Head Closed Ampoule Filling & Sealing – 20–40 ampoules/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Eight Head Closed Ampoule Filling and Sealing Machine
- Compact and heavy structure .
- Contact parts made from Stainless Steel AISI 316L.
- Ampoule transfer through cam mechanism system avoid no vibration.
- Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
- Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
- All drives of the unit synchronized with Single motor.
- Pre & Post nitrogen flushing unit.
- Cassette magazine for ampoules drop out.
- Extra smooth ampoule revolving unit at the sealing station.
- Pre-Heating unit for thick glass ampoules.
- Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
- No wastage of expensive liquids with “No Ampoule No Filling” feature.
- Easy regulation of speed with variable frequency drive.
- Vertical tray collection unit duly filled and sealed ampoules.
- PLC with touch screen HMI (Optional).
- Servo Based Filling Systems (Optional).
- Peristaltic Pumps for high accuracy of fill the costly liquids (On customer request).
- VFD drive for easy speed regulating (delta make).
- blower for blowing the flame heat outside of sterile room.
- Stainless Steel waste tips collector at the bottom side of ampoule filler and sealer machine.
Eight Head Ampoule Filling and Sealing Machine for Closed Ampoules Technical Specification
| No. of Head For Fill & Seal | Eight |
|---|---|
| Ampoule Type | Closed / D Type Glass Ampoules |
| Filling Capacity | From 0.5ml to 10ml in single dose |
| Output / Minute | 120 to 200 Ampoules / Minute (Depend on ampoules sizes) |
| Filling System | Stainless steel AISI 316 dosing syringes / pumps; servo or peristaltic filling optional |
| Contact Parts | Stainless Steel AISI 316L |
| Non-Contact Parts | Stainless Steel AISI 304, Mild Steel, Brass etc. |
| Gases | Oxygen, LPG & Nitrogen (regulated with flow meters) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available (for thick glass ampoules) |
| Speed Control | Variable Frequency Drive (VFD) |
| Controls | PLC with touch screen HMI (Optional) |
| Model No., Power, Dimensions & Weight | On request (contact us with your requirement) |
Video
Frequently Asked Questions
What production output can I expect from the Eight Head Closed Ampoule Filling and Sealing Machine?
It processes 120 to 200 ampoules per minute, depending on ampoule size.
What filling volume does the Eight Head Closed Ampoule Filling and Sealing Machine handle?
It fills 0.5ml to 10ml per dose into closed / D type glass ampoules.
What materials are the contact parts made from?
Contact parts are stainless steel AISI 316L; non-contact parts are AISI 304 stainless steel, mild steel and brass.
Does it avoid wasting liquid when an ampoule is missing?
Yes. The No Ampoule No Filling feature stops filling when no ampoule is present.
Which filling systems are available?
Stainless steel dosing syringes / pumps as standard, with servo or peristaltic filling available on request.
Can the Eight Head Closed Ampoule Filling and Sealing Machine be PLC controlled?
Yes. A PLC with touch screen HMI is available as an option, and speed is set through a variable frequency drive.
