Linear Vial Washer (Linear Vial Washing Machine)
Linear Vial Washer (Linear Vial Washing Machine). It is available in 2 models (HTVW-120 and HTVW-240); handles 16mm to 38mm; delivers a production output of 7000 / Hour (Depend on size) and 14000 / Hour (Depend on size); and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description

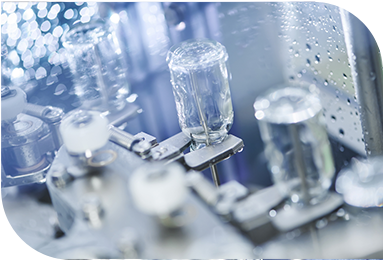

Linear Vial Washing Machine
Harsiddh Unimach Pvt Ltd is a recognized local and international supplier of a wide variety of vial washing machines including linear vial washer. These equipments are designed to cGMP standards and ensure that vials of different sizes are cleaned and decontaminated. These machines have been developed after wide research on decontamination and sterilization which ensures that these containers are aseptic before filling operation. Our linear vial washing machine is CE certified.
Vial Washing Machine – Htvw-120 And Htvw-240
Our linear vial washer is available in two models HTVW-120 and HTVW-240 for vial sizes 2ml to 30ml with 7000 per hour and 14000 per hour output depend on vial size. The equipment features are round turn table where the vials are loaded and pushed to a steady conveyor feed system having single or double track. The vials are then clamped, inverted and washed through several sequential washing cycles. The number of washes depends on the required sterilization and size of container but each linear vial washing machine is able to perform several washes.
These linear vial washing machines are specially designed for online operation where vials are cleaned and then directed to filling stations. This equipment is compact, flexible, vibration free, easy to clean and implement changeovers. Parts are made from durable stainless steel SS304 ensuring durability and long service life with minimal maintenance.
Where the Tunnel Type Linear Vial Washer HTVW fits in your production line
In a typical liquid injectable vial line, the Tunnel Type Linear Vial Washer HTVW handles vial washing. After it come sterilizing and depyrogenation, filling and rubber stoppering, cap sealing, external vial washing, visual inspection and vial labelling.
Other models in this range
- Linear Vial Washing Machine HLVW – 2–30 ml, up to 9,000 vials/hr
- Rotary Vial Washing Machine – 2–100 ml, up to 14,000 vials/hr
- External Vial Washing Machine HEVW-200 – 5–30 ml, up to 200 vials/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Salient Features of Linear Vial Washing Machine
- Fully automatic washing process of glass vials.
- 50 Jets for 5 washing zones in HTVW-120 & 100 Jets for washing zones in HTVW-240.
- Linear stationary mechanism.
- High durable Nylon pockets for vial holding.
- All contact parts made of SS316 material.
- Machine construction in SS304 material.
- Capable to wash for 5 ml to 30 ml Vial Size.
- Washing sequence can be adjust as per customers’ special requirements.
- Including with 2 Pumps and Tanks.
- Each washing zone with independent circuit to avoid contamination.
- Automatic In-feed and Exit of Vials.
Linear Vial Washing Machine Technical Specification
| Model No. | HTVW-120 | HTVW-240 |
| Output / Hour | 7000 / Hour (Depend on size) | 14000 / Hour (Depend on size) |
| Direction | Linear Tunnel Type | Linear Tunnel Type |
| Vial Dia. | 16mm to 38mm | 16mm to 38mm |
| Vial sizes | 2ml to 30ml | 2ml to 30ml |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Air Consumption | 12 to 15 CFM | 12 to 15 CFM |
| Washing Zone | 5 Zone Or can be set as per customer require sequences | 5 Zone Or can be set as per customer require sequences |
| Water Tank | 2 Nos. Each having 50 Litre | 2 Nos. Each having 50 Litre |
| Electrical Input | 380 V, 3 Phase, 50 Hz, 4 wire | 380 V, 3 Phase, 50 Hz, 4 wire |
| Power Requirements | 4 H.P. For Main Machine | 5 H.P. For Main Machine |
| Utilities | Fresh Water, DM Water, WFI, Air – 12 to 15 CFM |
Fresh Water, DM Water, WFI, Air – 12 to 15 CFM |
| Working Height | 850 to 950mm adjustable | 850 to 950mm adjustable |
| Dimension | 2750mm (L) X 1750mm (W) X 1675mm (H) | 3050mm (L) X 2100mm (W) X 1675mm (H) |
Video
Frequently Asked Questions
What container sizes does the Linear Vial Washer (Linear Vial Washing Machine) handle?
Linear Vial Washer (Linear Vial Washing Machine)'s vial Dia. is 16mm to 38mm.
What materials are the Linear Vial Washer (Linear Vial Washing Machine)'s contact parts made from?
Linear Vial Washer (Linear Vial Washing Machine)'s contact Parts is Stainless Steel 316L.
What production output can I expect from the Linear Vial Washer (Linear Vial Washing Machine)?
Output / Hour varies by model — HTVW-120: 7000 / Hour (Depend on size); HTVW-240: 14000 / Hour (Depend on size).
What are the power requirements for the Linear Vial Washer (Linear Vial Washing Machine)?
Linear Vial Washer (Linear Vial Washing Machine)'s electrical Input is 380 V, 3 Phase, 50 Hz, 4 wire.
What are the dimensions of the Linear Vial Washer (Linear Vial Washing Machine)?
Dimension varies by model — HTVW-120: 2750mm (L) X 1750mm (W) X 1675mm (H); HTVW-240: 3050mm (L) X 2100mm (W) X 1675mm (H).
What is the Air Consumption of the Linear Vial Washer (Linear Vial Washing Machine)?
Linear Vial Washer (Linear Vial Washing Machine)'s air Consumption is 12 to 15 CFM.
Is the Linear Vial Washer (Linear Vial Washing Machine) built to pharmaceutical industry standards?
Yes — it is built to cGMP and CE certified standards.
