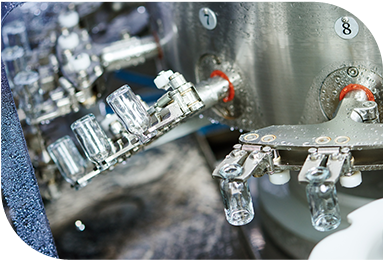

Rotary Vial Washing Machine
Rotary Vial Washing Machine harsiddh Unimach Pvt Ltd offers the best-quality Rotary Vial Washing Machine complying with the cGMP standards. It is available in 2 models (HRW – 120 V and HRW – 240 V); handles 16mm to 56mm; delivers a production output of 7200 / Hour (Depend on size) and 14000 / Hour (Depend on size); and is built to cGMP, CE certified, and FDA-approved material standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Unimach Pvt Ltd offers the best-quality Rotary Vial Washing Machine complying with the cGMP standards. With this particular equipment, you will receive an amazing output capacity of producing 240 vials in a minute. All the contact parts, wash media, and internal container surfaces are manufactured from AISI 316L-grade Stainless Steel. The product offers thorough washing for your vials with 3-air and 3-water washes. And this particular tool provides suitable washing for 2ml to 100ml ampoules and vials.
A unique benefit of the equipment is that it is customizable according to your washing requirements. With as many as three 25-liter tanks, this washing device features separate washing zones. Each of these washing zones has independent circuits that offer the perfect flexibility of operation. Because of this particular characteristic, operators are capable of avoiding contamination while washing. Almost all the welding joints and finishes are treated and processed in compliance with the cGMP standards. And this washing tool also operates via the in-feed of ampoules. The device also offers easy height adjustments from 900 to 950mm. Our rotary vial washing machines have CE certifications.
With rotary vial washing machine, operators will have the opportunity of performing external washes. Six distinguished washing stations ensure complete and optimum washing for several vials and ampoules through a unique process.
Where the Rotary Vial Washing Machine fits in your production line
In a typical liquid injectable vial line, the Rotary Vial Washing Machine handles vial washing. After it come sterilizing and depyrogenation, filling and rubber stoppering, cap sealing, external vial washing, visual inspection and vial labelling.
Other models in this range
- Tunnel Type Linear Vial Washer HTVW – 2–30 ml, up to 14,000 vials/hr
- Linear Vial Washing Machine HLVW – 2–30 ml, up to 9,000 vials/hr
- External Vial Washing Machine HEVW-200 – 5–30 ml, up to 200 vials/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Salient Features of Rotary Vial Washing Machine
- Complete cGMP Model
- Higher production output capacity of 120 &240 Vials per Minute
- All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel.
- Other parts are made from engineering plastic, FDA approved or AISI SS 304 Stainless Steel.
- All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.
- Machine provides 3 water washes & 3 Air washes.
- Complete flexibility with user for washing cycle.
- Suitable for 2ml to 100ml Glass Vials.
- Washing sequence can be made as per customer’s requirements.
- 3 Pumps and 3 Tanks of 25 liters each.
- Each washing zone with independent circuit to avoid contamination.
- Infeed and Exit of Ampoules/Vials.
Rotary Vial Washing Machine Technical Specification
| Model No. | HRW – 120 V | HRW – 240 V |
| Output / Hour | 7200 / Hour (Depend on size) | 14000 / Hour (Depend on size) |
| Direction | Rotary | Rotary |
| Vial Dia. | 16mm to 56mm | 16mm to 56mm |
| Vial sizes | 2ml to 100ml | 2ml to 100ml |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Electrical Input | 380 V, 3 Phase, 50 Hz | 380 V, 3 Phase, 50 Hz |
| Power Requirements | 1.5 H.P. For Main Machine | 1.5 H.P. For Main Machine |
| Working Height | 900 to 950mm adjustable | 900 to 950mm adjustable |
| Dimension | 1800mm (L) X 1950mm (W) | 2050mm (L) X 2000mm (W) |
Video
Frequently Asked Questions
What container sizes does the Rotary Vial Washing Machine handle?
Rotary Vial Washing Machine's vial Dia. is 16mm to 56mm.
What materials are the Rotary Vial Washing Machine's contact parts made from?
Rotary Vial Washing Machine's contact Parts is Stainless Steel 316L.
What production output can I expect from the Rotary Vial Washing Machine?
Output / Hour varies by model — HRW – 120 V: 7200 / Hour (Depend on size); HRW – 240 V: 14000 / Hour (Depend on size).
What are the power requirements for the Rotary Vial Washing Machine?
Rotary Vial Washing Machine's electrical Input is 380 V, 3 Phase, 50 Hz.
What are the dimensions of the Rotary Vial Washing Machine?
Dimension varies by model — HRW – 120 V: 1800mm (L) X 1950mm (W); HRW – 240 V: 2050mm (L) X 2000mm (W).
What is the Working Height of the Rotary Vial Washing Machine?
Rotary Vial Washing Machine's working Height is 900 to 950mm adjustable.
Is the Rotary Vial Washing Machine built to pharmaceutical industry standards?
Yes — it is built to cGMP, CE certified, and FDA-approved material standards.
