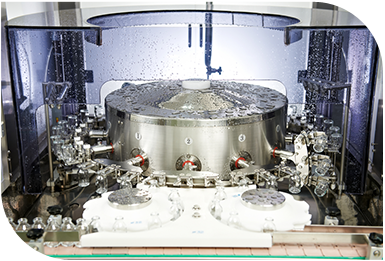

Linear Vial Washing Machine
Linear Vial Washing Machine harsiddh Unimach Pvt Ltd is a recognized brand in the supply vial washing machines. It is available in 2 models (HLVW-80 and HLVW-150); handles 16mm to 38mm; delivers a production output of 4800 / Hour (Depend on size) and 9000 / Hour (Depend on size); and is built to cGMP and CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Unimach Pvt Ltd is a recognized brand in the supply vial washing machines. The two popular automatic linear vial washing machines are the HLVW-150 and the HLVW-80 model. The HLVW- 150 has a throughput of 60-150 vials per minute while the HLVW-80 model has capacity of 40 to 80 vials per minute depending on vial size that ranges from 2ml to 20ml. Our vial washing machine has CE certification.
The loading, cleaning and exit mechanisms are automatic and this increases the cleaning throughput and ensures minimum handling and contamination. The linear vial washer machines have a specially designed in-feed worm wheel that inverts vials and holds them on an indexing device ready for the first wash. The washing cycle is achieved through water and air nozzles that are directed on the inverted vials for maximum cleaning. The specially designed pumps supply water to nozzles at high pressure to effect the cleaning.
The devices are specially designed to perform 7 washing cycles depending on the user preferences and type of vial be cleaned. The machines have an automatic system to exit the bottle after cleaning ready for further processing. Parts that come into contact with the vials are manufactured from stainless steel SS316 and meet the cGMP standards for pharmaceutical and chemical manufacturing processes.
These machines have low water and electrical power consumption. In addition, the input and exit feed worm, in feed and exit star wheel can be easily changed to clean larger or smaller vials. This increases the machine flexibility and reduces the changeover time.
Where the Linear Vial Washing Machine HLVW fits in your production line
In a typical liquid injectable vial line, the Linear Vial Washing Machine HLVW handles vial washing. After it come sterilizing and depyrogenation, filling and rubber stoppering, cap sealing, external vial washing, visual inspection and vial labelling.
Other models in this range
- Tunnel Type Linear Vial Washer HTVW – 2–30 ml, up to 14,000 vials/hr
- Rotary Vial Washing Machine – 2–100 ml, up to 14,000 vials/hr
- External Vial Washing Machine HEVW-200 – 5–30 ml, up to 200 vials/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Salient Features of Linear Vial Washing Machine
- Linear left to right direction.
- Indexing linear chain mechanism.
- Automatic in feed of vials through un-scrambler.
- Machine Provides 4 Water Washes & 3 Air Washes.
- Suitable for siliconization (Optional).
- Separate pumping systems provide high pressure jets.
- Complete Flexibility with user for washing cycle.
- All contact parts made from SS316L.
- Entire Frame Covers & Non-contact parts made out from SS 304.
- Nozzles Enter into the container during washing cycle to meet cGMP Requirement.
- Low water consumption.
- Quick change over with minimum use of tools.
Linear Vial Washing Machine Technical Specification
| Model No. | HLVW-80 | HLVW-150 |
| Output / Hour | 4800 / Hour (Depend on size) | 9000 / Hour (Depend on size) |
| Direction | Linear (Left to right) | Linear (Left to right) |
| Vial Dia. | 16mm to 38mm | 16mm to 38mm |
| Vial sizes | 2ml to 30ml | 2ml to 30ml |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Electrical Input | 380 V, 3 Phase, 50 Hz, 4 wire | 380 V, 3 Phase, 50 Hz, 4 wire |
| Power Requirements | 1 H.P. For Main Machine 0.5 H.P. For Un-scrambler (0.5 H.P. X 3 No) = 1.5 H.P. for Pumping station |
1.5 H.P. For Main Machine 0.5 H.P. For Un-scrambler (0.5 H.P. X 3 No) = 1.5 H.P. for Pumping station |
| Utilities | Fresh Water, DM Water, WFI, Air – 30 CFM @ 5 bar |
Fresh Water, DM Water, WFI, Air – 30 CFM @ 5 bar |
| Working Height | 900 to 950mm adjustable | 900 to 950mm adjustable |
| Dimension | 1700mm (L) X 650mm (W) | 2000mm (L) X 950mm (W) |
Video
Frequently Asked Questions
What container sizes does the Linear Vial Washing Machine handle?
Linear Vial Washing Machine's vial Dia. is 16mm to 38mm.
What materials are the Linear Vial Washing Machine's contact parts made from?
Linear Vial Washing Machine's contact Parts is Stainless Steel 316L.
What production output can I expect from the Linear Vial Washing Machine?
Output / Hour varies by model — HLVW-80: 4800 / Hour (Depend on size); HLVW-150: 9000 / Hour (Depend on size).
What are the power requirements for the Linear Vial Washing Machine?
Linear Vial Washing Machine's electrical Input is 380 V, 3 Phase, 50 Hz, 4 wire.
What are the dimensions of the Linear Vial Washing Machine?
Dimension varies by model — HLVW-80: 1700mm (L) X 650mm (W); HLVW-150: 2000mm (L) X 950mm (W).
What is the Utilities of the Linear Vial Washing Machine?
Linear Vial Washing Machine's utilities is Fresh Water, DM Water, WFI, Air – 30 CFM @ 5 bar.
Is the Linear Vial Washing Machine built to pharmaceutical industry standards?
Yes — it is built to cGMP and CE certified standards.
