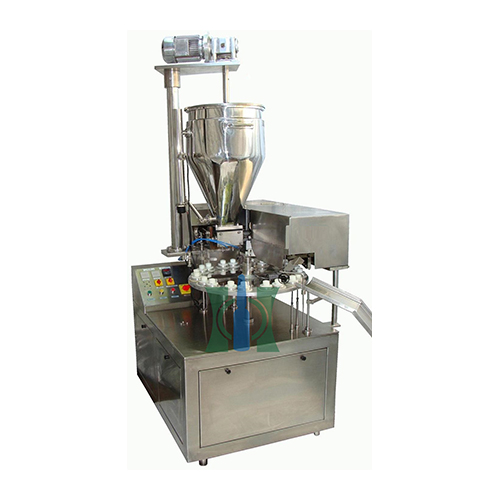

Semi Automatic Plastic Tube Filling Machine
The Semi Automatic Plastic Tube Filling Machine fills, seals and trims plastic and lami tubes with 5 gms to 200 gms of cream, gel, paste, balm or ointment at ±1% accuracy. It has a rotary compact design, SS 316 filling area and hopper, and a No Tube - No Filling sensor. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Semi Automatic Plastic Tube Filling Machine manufactured by us is quite robust, efficient and cost effective. It is known for its ergonomic advantages and it is pretty easy to operate. The machine consists of a full-size opening of the front guard that facilitates feasible access. Whether it is about carrying out maintenance or change-overs, you will never be hassled while using this machine.
Tube filling and packing machine manufactured by us is specifically designed with excellent tube orientation system and fantastic accuracy. This plastic tube filler is suitable for tube filling and sealing in cosmetic, pharmaceutical and food industry. The most common uses of this tube filling and sealing machine is filling gel, paste, balm, cream and ointment apart from other viscous products by using a volumetric dosing system.
Lami tube filling machine is constructed with mild steel angles and it is also painted for a great and smooth finish. All contact parts of the machine are made of high quality stainless steel 304. The filling mechanism of plastic tube filler machine is driven mechanically and has a positive suction pump assembly. The machine comes equipped with an advanced ‘No tube-No filling’ sensor system which is connected to a pneumatic cylinder which allows filling only when a tube is present at the filling point. The machine also ensures a clean cut-off and weight accuracy. Our plastic tube filler does filling, sealing and trimming with astonishing precision. It also has pneumatic blades to provide smooth finish once the trimming process is complete.
If needed, you can go for optional accessories such as automatic tube orientation system, jacketed hopper with stirrer, air compressor and an extra size syringe set.
For more information about cosmetic tube filling machine, feel free to touch base with us.
Where the Semi-Automatic Plastic Tube Filling Machine fits in your production line
In a typical tube filling line, the Semi-Automatic Plastic Tube Filling Machine handles tube filling and sealing. After it come inspection.
Other models in this range
- Semi-Automatic Aluminium Tube Filling Machine – 5–100 ml, up to 50 tubes/min
- Tube Filling, Crimping & Batch Coding Machine – 8 stations for aluminium tubes
- Automatic Lami Tube Filling Machine – 10–200 ml, up to 60 tubes/min
- Aluminium Tube Filling & Sealing Machine – semi-automatic, single or double head
- Cosmetic Bottle Filling Machine – 5–1000 ml, 50–120/min
- Lotion & Gel Filling Machine – 2 or 4 heads, 5–1000 ml
- Petroleum Jelly Filling Machine – 10–500 g, up to 50 jars/min
- Pain Balm Filling Machine – heated hopper, 10–500 g
- Automatic Tube Filling Machine HTF-40A – single head, lami and plastic tubes
- Double Head Tube Filling Machine HTF-70A – 60–80 tubes/min
- Automatic Aluminium Tube Filler HTF-40AL – 40–50 tubes/min
- Lip Balm Filling Machine – heated hopper, 10–500 g
- Spout Pouch Filling & Capping Machine – stand-up spout pouches
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Semi Automatic Plastic Tube Filling Machine
- Rotary type compact design.
- Filling Area and hopper made from Stainless Steel 316 quality materials.
- Machine covered with Stainless Steel 304 coverings.
- Suitable for filling from 5gms. to 200gms.
- Higher filling accuracy of ±1%.
- Correct & uniform filling.
- No tube – No filling” device.
- Relay electrical control system with operating panel with Start, Stop, Inch button and Speed port.
- S. filling syringe with direct connection to storage tank, hence no wastage of material.
- Variable Motor speed adjustment.
- Batch coding Number (male or female) also available
- Production counter available on control panel to indicate number of tube filled.
- Lower maintenance requires.
- Automatic tube ejection.
Semi Automatic Plastic Tube Filling Machine Technical Specification
| Machine Type | Semi-automatic, rotary type compact design |
|---|---|
| Suitable Tubes | Plastic / Lami tubes |
| Fill Range | 5 gms to 200 gms |
| Filling Accuracy | ±1% |
| Filling System | Volumetric dosing syringe with direct connection to storage tank |
| Operations | Filling, sealing & trimming (pneumatic trimming blades) |
| Filling Area & Hopper | Stainless Steel 316 |
| Machine Covers | Stainless Steel 304 |
| Safety | No Tube - No Filling sensor |
| Controls | Relay control panel with Start, Stop, Inch; variable speed; production counter |
| Tube Ejection | Automatic |
| Optional | Batch coding, automatic tube orientation, jacketed hopper with stirrer |
| Model No., Output, Dimensions & Weight | On request (contact us with your requirement) |
Video
Frequently Asked Questions
What fill range does the Semi Automatic Plastic Tube Filling Machine handle?
It fills from 5 gms to 200 gms per tube.
How accurate is the Semi Automatic Plastic Tube Filling Machine?
It fills with an accuracy of ±1%.
Which products can it fill?
Creams, ointments, gels, pastes, balms and other viscous products in plastic and lami tubes.
What operations does the machine perform?
Filling, sealing and trimming, with pneumatic blades for a smooth finish and automatic tube ejection.
What materials are used?
The filling area and hopper are stainless steel 316 and the machine covers are stainless steel 304.
Does it fill when no tube is present?
No. A No Tube - No Filling sensor allows filling only when a tube is at the filling point.
