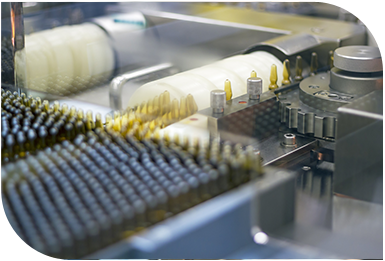

Eight Head Ampoule Filling and Sealing Machine

Eight Head Ampoule Filling and Sealing Machine

Harsiddh Eight Head Ampoule Filling and Sealing Machine as the name suggests equipped with eight head to fill injection liquids in 1ml to 10ml open mouth glass ampoules. It handles 1ml to 10ml Open Mouth Glass Ampoules; delivers a production output of 80 to 225 Ampoules / Minute (Depend on ampoules sizes); and is built to cGMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

Harsiddh Eight Head Ampoule Filling and Sealing Machine as the name suggests equipped with eight head to fill injection liquids in 1ml to 10ml open mouth glass ampoules; having increased filling capacity from 0.5ml to 10ml in single dose. The ampoule filling & sealing machine parts are made of high quality Stainless Steel for long lasting operations with low maintenance. The ampoule filling and sealing machine is designed at Harsiddh for maximum output of 80 to 225 ampoules per minute based on the size. It uses the mixture of LPG and Oxygen for sealing process. Pre & Post Nitrogen Purging is available with Pre heating.

All drives of heavy structured compact unit are synchronized with single motor. The unit is assembled with cassette magazine, smooth ampoule revolving unit, pre-heating unit, flow meters, variable frequency drive, vertical tray collection, pre-warming station and other parts. It follows “No Ampoule No Filling” function and minimum change over parts from 0.5ml to 10ml ampoule size. The entire unit defined in a very flexible way for easy maintenance and full accessibility. Compact cGMP model offered by us is highly demanded in Pharmaceutical and other filling industries.

ampoule Filler & ampoule Sealer is constantly evolved in our in-house research lab for better performance at all production stages. We also provide all possible industry specific customization as on required at client end.

Where the 8 Head Ampoule Filling & Sealing HFS-8 fits in your production line

In a typical ampoule injection line, the 8 Head Ampoule Filling & Sealing HFS-8 handles ampoule filling and sealing. Before it come ampoule washing and sterilizing and depyrogenation. After it come visual inspection and ampoule labelling.

Other models in this range

Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.

Features of Eight Head Ampoule Filling and Sealing Machine

  • Compact and heavy structure .
  • Contact parts made from Stainless Steel AISI 316L.
  • Ampoule transfer through cam mechanism system avoid no vibration.
  • Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
  • Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
  • All drives of the unit synchronized with Single motor.
  • Pre & Post nitrogen flushing unit.
  • Cassette magazine for ampoules drop out.
  • Extra smooth ampoule revolving unit at the sealing station.
  • Pre-Heating unit for thick glass ampoules.
  • Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
  • No wastage of expensive liquids with “No Ampoule No Filling” feature.
  • Easy regulation of speed with variable frequency drive.
  • Vertical tray collection unit duly filled and sealed ampoules.
  • PLC with touch screen HMI (Optional).
  • Servo Based Filling Systems (Optional).
  • Peristaltic Pumps for high accuracy of fill the costly liquids (On customer request).
  • VFD drive for easy speed regulating (delta make).
  • blower for blowing the flame heat outside of sterile room.
  • Stainless Steel waste tips collector at the bottom side of machine.
Eight Head Ampoule Filling and Sealing Machine

Eight Head Ampoule Filling and Sealing Machine Technical Specification

Model No. HFS-8 (High Speed) Off Line model
Ampoule Sizes 1ml to 10ml Open Mouth Glass Ampoules
Filling Capacity From 0.5ml to 10ml in single dose
Filling Type Piston Pumps Type Filling (Volumetric)
Contact Parts Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump)
Output / Minute 80 to 225 Ampoules / Minute (Depend on ampoules sizes)
No. of Head For Fill & Seal Eight
Require Gases For Sealing LPG & Oxygen (Mixture)
Nitrogen Purging Available (Pre & Post)
Pre Heating Available
Power Require 1.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR
1.5 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised
Over All Dimensions 2430mm (L) X 1200mm (W) X 1000mm (H)
Net Weight 1270 Kgs.
Gross Weight (With Wooden Case) 1550 Kgs.
Ampoule Filler and Sealer Machine
For Bulk Orders,
Feel Free To
Contact Us Now

Video

Frequently Asked Questions

What container sizes does the Eight Head Ampoule Filling and Sealing Machine handle?

Eight Head Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 10ml Open Mouth Glass Ampoules.

What materials are the Eight Head Ampoule Filling and Sealing Machine's contact parts made from?

Eight Head Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).

What production output can I expect from the Eight Head Ampoule Filling and Sealing Machine?

Eight Head Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 10ml in single dose.

What are the power requirements for the Eight Head Ampoule Filling and Sealing Machine?

Eight Head Ampoule Filling and Sealing Machine's power Require is 1.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1.5 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.

What are the dimensions of the Eight Head Ampoule Filling and Sealing Machine?

Eight Head Ampoule Filling and Sealing Machine's over All Dimensions is 2430mm (L) X 1200mm (W) X 1000mm (H).

How much does the Eight Head Ampoule Filling and Sealing Machine weigh?

Eight Head Ampoule Filling and Sealing Machine's net Weight is 1270 Kgs.

Is the Eight Head Ampoule Filling and Sealing Machine built to pharmaceutical industry standards?

Yes — it is built to cGMP standards.
