Six Head Ampoule Filling and Sealing Machine

Six Head Ampoule Filling and Sealing Machine

Harsiddh Automatic six head ampoule filling and sealing machine follows Angle Travel principle with improved filling capacity from 0.5ml to 10ml useful for varied ampoule sizes ranging from 1ml to 10ml open mouth. It handles 1ml to 10ml Open Mouth Glass Ampoules; delivers a production output of 80 to 150 Ampoules / Minute (Depend on ampoules sizes); and is built to CE certified standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

Harsiddh Automatic six head ampoule filling and sealing machine follows Angle Travel principle with improved filling capacity from 0.5ml to 10ml useful for varied ampoule sizes ranging from 1ml to 10ml open mouth. The machine equipped with six head increases the output up to 80 to 150 ampoules per minutes based on their sizes.

Our six head filler & sealer is made up of sturdy SS heavy duty Material that are manufactured for long working hours. Harsiddh Unimach Pvt Ltd is well reputed Pharmaceutical machinery manufacturer had started the production with the ampoule filling machines, which are CE certified with DUNS numbers. Ampoule Filling And Sealing Machines are exported to various international destinations as on requirement. They are specially designed and tested in our in house lab. Our research engineers keep on adding the enhanced features to the equipment over the period. We also provide them with customization as on client’s requirement.

Six head ampoule filling and sealing Operation Process:

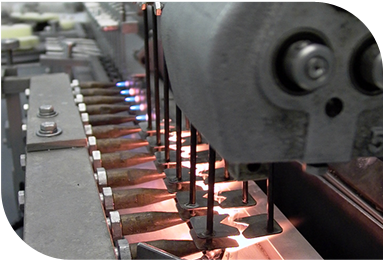

The tray with sterile ampoules loads into the slant hopper. Ampoules push on one after another on eccentric rack with star wheel synchronization. Auto handling of pre-gassing, filling, post gassing, pre-heating and finally sealed in a sequential manner on stopping the rack. Completely filled and sealed ampoules are auto collected without human touch to avoid any contamination.

Where the 6 Head Ampoule Filling & Sealing HFS-6 fits in your production line

In a typical ampoule injection line, the 6 Head Ampoule Filling & Sealing HFS-6 handles ampoule filling and sealing. Before it come ampoule washing and sterilizing and depyrogenation. After it come visual inspection and ampoule labelling.

Other models in this range

Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.

Features of Six Head Ampoule Filling and Sealing Machine

  • Compact and heavy structure .
  • Contact parts made from Stainless Steel AISI 316L.
  • Ampoule transfer through cam mechanism system avoid no vibration.
  • Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
  • Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
  • All drives of the unit synchronized with Single motor.
  • Pre & Post nitrogen flushing unit.
  • Cassette magazine for ampoules drop out.
  • Extra smooth ampoule revolving unit at the sealing station.
  • Pre-Heating unit for thick glass ampoules.
  • Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
  • No wastage of expensive liquids with “No Ampoule No Filling” feature.
  • Easy regulation of speed with variable frequency drive.
  • Vertical tray collection unit duly filled and sealed ampoules.
  • PLC with touch screen HMI (Optional).
  • Servo Based Filling Systems (Optional).
  • Peristaltic Pumps for high accuracy of fill the costly liquids (On customer request).
  • VFD drive for easy speed regulating (delta make).
  • blower for blowing the flame heat outside of sterile room.
  • Stainless Steel waste tips collector at the bottom side of machine.

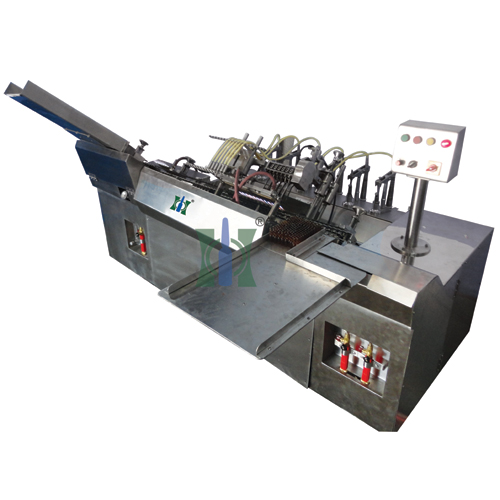

Six Head Ampoule Filling and Sealing Machine

Six Head Ampoule Filling and Sealing Machine Technical Specification

Model No. HFS-6 (High Speed) Off Line Model
Ampoule Sizes 1ml to 10ml Open Mouth Glass Ampoules
Filling Capacity From 0.5ml to 10ml in single dose
Filling Type Piston Pumps Type Filling (Volumetric)
Contact Parts Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump)
Output / Minute 80 to 150 Ampoules / Minute (Depend on ampoules sizes)
No. of Head For Fill & Seal Six
Require Gases For Sealing LPG & Oxygen (Mixture)
Nitrogen Purging Available (Pre & Post)
Pre Heating Available
Power Require 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR
1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised
Over All Dimensions 1950mm (L) X 1200mm (W) X 1000mm (H)
Net Weight 750 Kgs.
Gross Weight (With Wooden Case) 1050 Kgs.
Ampoule Filler and Sealer Machine
For Bulk Orders,
Feel Free To
Contact Us Now

Video

Frequently Asked Questions

What container sizes does the Six Head Ampoule Filling and Sealing Machine handle?

Six Head Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 10ml Open Mouth Glass Ampoules.

What materials are the Six Head Ampoule Filling and Sealing Machine's contact parts made from?

Six Head Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).

What production output can I expect from the Six Head Ampoule Filling and Sealing Machine?

Six Head Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 10ml in single dose.

What are the power requirements for the Six Head Ampoule Filling and Sealing Machine?

Six Head Ampoule Filling and Sealing Machine's power Require is 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.

What are the dimensions of the Six Head Ampoule Filling and Sealing Machine?

Six Head Ampoule Filling and Sealing Machine's over All Dimensions is 1950mm (L) X 1200mm (W) X 1000mm (H).

How much does the Six Head Ampoule Filling and Sealing Machine weigh?

Six Head Ampoule Filling and Sealing Machine's net Weight is 750 Kgs.

Is the Six Head Ampoule Filling and Sealing Machine built to pharmaceutical industry standards?

Yes — it is built to CE certified standards.
