Two Head Ampoule Filling and Sealing Machine
Harsiddh Two head ampoule filling and sealing machine is used to fill 0.5ml to 25ml liquid filling with 2 head fillers and sealers in a single dose applied to 1ml to 25ml open mouth glass ampoules. It handles 1ml to 25ml Open Mouth Glass Ampoules; and delivers a production output of 30 to 40 Ampoules / Minute (Depend on ampoules sizes). Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Two head ampoule filling and sealing machine is used to fill 0.5ml to 25ml liquid filling with 2 head fillers and sealers in a single dose applied to 1ml to 25ml open mouth glass ampoules. The production capacity of this machine is 30 to 40 ampoules per minute.
The slant travelling ampoule filling and sealing capacity varies based on the type, thickness and neck dimension of ampoules. The machine is made up of sturdy SS materials with minimum change over parts and easy maintenance. Single motor placement synchronized all the drives causes’ smooth rotation of ampoules at sealing station. Automatic sensors stop the filling as soon the ampoule filling machine doesn’t found the ampoule.

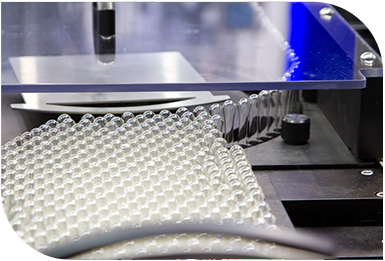

Harsiddh Unimach Pvt Ltd is one of the leading firms known for delivering optimum performance pharmaceutical machineries. Ampoule Filler And Sealer are mechanized to load ampoules directly into the slant hopper. Ampoules move on eccentric rack following each other with the synchronization of star wheel. The ampoule sealing machine carry on internal processes like pre and post gassing, filling, heating and sealing on stoppage of the rack. It is available in standard as well on customer specific requirement.
Where the 2 Head Ampoule Filling & Sealing HFS-55 fits in your production line
In a typical ampoule injection line, the 2 Head Ampoule Filling & Sealing HFS-55 handles ampoule filling and sealing. Before it come ampoule washing and sterilizing and depyrogenation. After it come visual inspection and ampoule labelling.
Other models in this range
- High Speed 8 Head Ampoule Filler HFS-300V – up to 280 ampoules/min, tunnel-linked
- 8 Head Ampoule Filling & Sealing HFS-8 – 80–225 ampoules/min
- 6 Head Ampoule Filling & Sealing HFS-6 – 80–150 ampoules/min
- 4 Head Ampoule Filling & Sealing HFS-4 – 60–90 ampoules/min
- Single Head Ampoule Filling & Sealing HFS-30 – 10–15 ampoules/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Two Head Ampoule Filling and Sealing Machine
- Compact structure free from vibration.
- Contact parts made from Stainless Steel AISI 316L.
- Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
- Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
- All drives of the unit synchronized with Single motor.
- Pre & Post nitrogen flushing unit.
- Smooth ampoule rotating unit at the sealing station.
- Pre-Heating unit for thick glass ampoules.
- Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
- No wastage of expensive liquids with “No Ampoule No Filling” feature.
- Easy regulation of speed with variable frequency drive.
- Vertical tray collection unit duly filled and sealed ampoules (Optional).
- Stainless Steel waste tips collector at the bottom side of machine.
Two Head Ampoule Filling and Sealing Machine Technical Specification
| Model No. | HFS-55 / Off Line model |
|---|---|
| Ampoule Sizes | 1ml to 25ml Open Mouth Glass Ampoules |
| Filling Capacity | From 0.5ml to 25ml in single dose |
| Filling Type | Piston Pumps Type Filling (Volumetric) |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump) |
| Output / Minute | 30 to 40 Ampoules / Minute (Depend on ampoules sizes) |
| No. of Head For Fill & Seal | Two |
| Require Gases For Sealing | LPG & Oxygen (Mixture) |
| Nitrogen Purging | Available (Pre & Post) |
| Pre Heating | Available |
| Power Require | 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 0.5 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised |
| Over All Dimensions | 900mm (L) X 750mm (W) X 1000mm (H) |
| Net Weight | 180 Kgs. |
| Gross Weight (With Wooden Case) | 390 Kgs. |
Video
Frequently Asked Questions
What container sizes does the Two Head Ampoule Filling and Sealing Machine handle?
Two Head Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 25ml Open Mouth Glass Ampoules.
What materials are the Two Head Ampoule Filling and Sealing Machine's contact parts made from?
Two Head Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).
What production output can I expect from the Two Head Ampoule Filling and Sealing Machine?
Two Head Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 25ml in single dose.
What are the power requirements for the Two Head Ampoule Filling and Sealing Machine?
Two Head Ampoule Filling and Sealing Machine's power Require is 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 0.5 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.
What are the dimensions of the Two Head Ampoule Filling and Sealing Machine?
Two Head Ampoule Filling and Sealing Machine's over All Dimensions is 900mm (L) X 750mm (W) X 1000mm (H).
How much does the Two Head Ampoule Filling and Sealing Machine weigh?
Two Head Ampoule Filling and Sealing Machine's net Weight is 180 Kgs.
