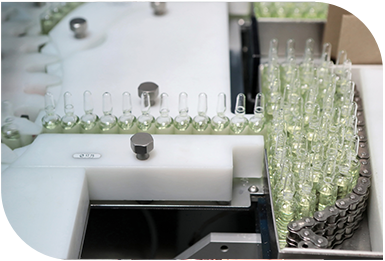

Single Head Ampoule Filling and Sealing Machine
Harsiddh Single head ampoule filling and sealing machine is used to fill and seal injectable liquids in glass ampoules. It handles 1ml to 25ml Open Mouth Glass Ampoules; delivers a production output of 10 to 15 Ampoules / Minute (Depend on ampoules sizes); and is built to cGMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Single head ampoule filling and sealing machine is used to fill and seal injectable liquids in glass ampoules. Sterile and injection liquids are packed with this device in pharmaceutical industries. Mainly the machine is applied in research and development laboratories and pilot plant for liquid injection development. The ampoule filling machine ensures precision and efficiency in every operation.
Filling and Sealing operations with ampoule filling & sealing machine is based on the principle of angle travel of ampoules. It takes cares of various parameters including thickness, neck dimension and quality of ampoules. It’s a great combination of flusher, filler and sealer. Traditional ampoule feed has been replaced with rectangular feeding system that is one of the important and highly demanded features in our system. This increases the stability of ampoules and prevents breakage.
Automatic feeding, transfer, pre-post nitrogen purging, material filling, heating and sealing are executed and controlled with this latest technological advanced machinery. The inbuilt feature “No Ampoule, No Filling” is comprehensive for costly materials to feed precisely without wastage. The mechanism is competent for 1ml to 25ml open mouth glass ampoules with 0.5ml to 25ml filling efficiency in single dose. The filled production can be achieved from 10 to 15 ampoules/min based on ampoule size.
Where the Single Head Ampoule Filling & Sealing HFS-30 fits in your production line
In a typical ampoule injection line, the Single Head Ampoule Filling & Sealing HFS-30 handles ampoule filling and sealing. Before it come ampoule washing and sterilizing and depyrogenation. After it come visual inspection and ampoule labelling.
Other models in this range
- High Speed 8 Head Ampoule Filler HFS-300V – up to 280 ampoules/min, tunnel-linked
- 8 Head Ampoule Filling & Sealing HFS-8 – 80–225 ampoules/min
- 6 Head Ampoule Filling & Sealing HFS-6 – 80–150 ampoules/min
- 4 Head Ampoule Filling & Sealing HFS-4 – 60–90 ampoules/min
- 2 Head Ampoule Filling & Sealing HFS-55 – 30–40 ampoules/min
Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.
Features of Single Head Ampoule Filling and Sealing Machine
- compact cGMP model.
- All contact parts are made from stainless steel AISI 316 material.
- single motor customized with all drives of the unit.
- A delicate ampoule rotating unit attached at the sealing station.
- Pre & Post nitrogen flushing unit.
- Pre heating unit for thick glass ampoules.
- Minimum change over the ampoule size.
- Sloping tray for diverting filled and sealed ampoules.
- Waste tips collector made with the high quality stainless steel.
- Appropriate for all open mouth glass ampoules.
Single Head Ampoule Filling and Sealing Machine Technical Specification
| Model No. | HFS-30 / Off Line Model> |
|---|---|
| Ampoule Sizes | 1ml to 25ml Open Mouth Glass Ampoules> |
| Filling Capacity | From 0.5ml to 25ml in single dose > |
| Filling Type | Piston Pumps Type Filling (Volumetric)> |
| Contact Parts | Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump)> |
| Output / Minute | 10 to 15 Ampoules / Minute (Depend on ampoules sizes)> |
| No. of Head For Fill & Seal | One |
| Require Gases For Sealing | LPG & Oxygen (Mixture)> |
| Nitrogen Purging | Available (Pre & Post)> |
| Pre Heating | Available |
| Power Require | 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) |
| Over All Dimensions | 750mm (L) X 500mm (W) X 1000mm (H) |
| Net Weight> | 70 Kgs. |
| Gross Weight (With Wooden Case) | 180 Kgs.> |
Video
Frequently Asked Questions
What container sizes does the Single Head Ampoule Filling and Sealing Machine handle?
Single Head Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 25ml Open Mouth Glass Ampoules.
What materials are the Single Head Ampoule Filling and Sealing Machine's contact parts made from?
Single Head Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).
What production output can I expect from the Single Head Ampoule Filling and Sealing Machine?
Single Head Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 25ml in single dose.
What are the power requirements for the Single Head Ampoule Filling and Sealing Machine?
Single Head Ampoule Filling and Sealing Machine's power Require is 0.5 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems).
What are the dimensions of the Single Head Ampoule Filling and Sealing Machine?
Single Head Ampoule Filling and Sealing Machine's over All Dimensions is 750mm (L) X 500mm (W) X 1000mm (H).
How much does the Single Head Ampoule Filling and Sealing Machine weigh?
Single Head Ampoule Filling and Sealing Machine's net Weight is 70 Kgs.
Is the Single Head Ampoule Filling and Sealing Machine built to pharmaceutical industry standards?
Yes — it is built to cGMP standards.
