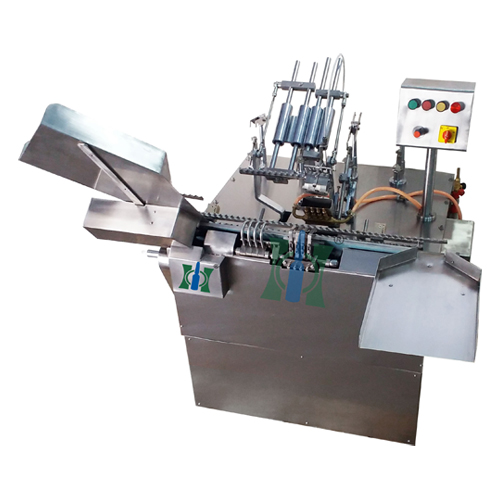

Four Head Ampoule Filling and Sealing Machine

Four Head Ampoule Filling and Sealing Machine

Precisely formulated four head filling and sealing machine for ampoules are built with quality components and even offered at Harsiddh Unimach Pvt Ltd with great customization. It handles 1ml to 5ml Open Mouth Glass Ampoules; delivers a production output of 60 to 90 Ampoules / Minute (Depend on ampoules sizes); and is built to cGMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.

Description

Precisely formulated four head filling and sealing line for ampoules are built with quality components and even offered at Harsiddh Unimach Pvt Ltd with great customization. The contact and non-contact parts are manufactured with SS AISI 316L and AISI 304 respectively. Some of the features are as similar to other sealing and filling models apart from the filling size and capacity with number of filling heads.

Four head ampoule filler & sealer are used to fill 0.5ml to 5ml with 4 head in a single dose applied to 1ml to 5ml open mouth glass ampoules. The production capacity of this ampoule filling & sealing machine is 60 to 90 ampoules per minute. The ampoule filler and sealer machine is used to fill all types of injectable liquids and is operating based on slant travelling principle. It is designed and executing the operation following the ampoule neck dimension, thickness and size variations. Conventional feed system has been replaced with rectangle feeding and the desired production capacity can be achieved with auto-feed, transfer, nitrogen flushing, filling, heating and sealing features. The filling stops automatically if there is no ampoule; the inbuilt feature is enhanced comprehensively in this machine.

This cGMP model is quite compact with minimum change over time. As a leading manufacturer & exporter of four head ampoule filling and sealing machine, Harsiddh Unimach Pvt Ltd has incorporated very important features in the system that are useful for bulk productivity, easy operation and low maintenance.

Where the 4 Head Ampoule Filling & Sealing HFS-4 fits in your production line

In a typical ampoule injection line, the 4 Head Ampoule Filling & Sealing HFS-4 handles ampoule filling and sealing. Before it come ampoule washing and sterilizing and depyrogenation. After it come visual inspection and ampoule labelling.

Other models in this range

Need help choosing? Send your requirement with your container size, fill volume and output, or contact our team in Ahmedabad.

Features of Four Head Ampoule Filling and Sealing Machine

  • Compact structure free from vibration.
  • Contact parts made from Stainless Steel AISI 316L.
  • Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
  • Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
  • All drives of the unit synchronized with Single motor.
  • Pre & Post nitrogen flushing unit.
  • Smooth ampoule rotating unit at the sealing station.
  • Pre-Heating unit for thick glass ampoules.
  • Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
  • No wastage of expensive liquids with “No Ampoule No Filling” feature.
  • Easy regulation of speed with variable frequency drive.
  • Vertical tray collection unit duly filled and sealed ampoules.
  • VFD drive for easy speed regulating (delta make).
  • Stainless Steel waste tips collector at the bottom side of machine.

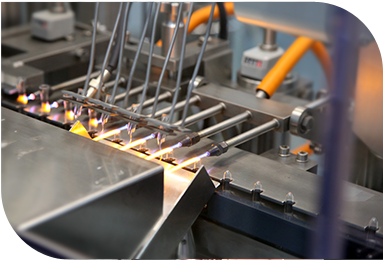

Four Head Ampoule Filling and Sealing Machine

Four Head Ampoule Filling and Sealing Machine Technical Specification

Model No. HFS-4 / Off Line model
Ampoule Sizes 1ml to 5ml Open Mouth Glass Ampoules
Filling Capacity From 0.5ml to 5ml in single dose
Filling Type Piston Pumps Type Filling (Volumetric)
Contact Parts Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump)
Output / Minute 60 to 90 Ampoules / Minute (Depend on ampoules sizes)
No. of Head For Fill & Seal Four
Require Gases For Sealing LPG & Oxygen (Mixture)
Nitrogen Purging Available (Pre & Post)
Pre Heating Available
Power Require 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR
1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised
Over All Dimensions 1050mm (L) X 800mm (W) X 1000mm (H)
Net Weight 285 Kgs.
Gross Weight (With Wooden Case) 460 Kgs.
Ampoules Filler and Sealer Machine
For Bulk Orders,
Feel Free To
Contact Us Now

Video

Frequently Asked Questions

What container sizes does the Four Head Ampoule Filling and Sealing Machine handle?

Four Head Ampoule Filling and Sealing Machine's ampoule Sizes is 1ml to 5ml Open Mouth Glass Ampoules.

What materials are the Four Head Ampoule Filling and Sealing Machine's contact parts made from?

Four Head Ampoule Filling and Sealing Machine's contact Parts is Stainless Steel AISI 316L (For Filling Nozzle & Syringe / Pump).

What production output can I expect from the Four Head Ampoule Filling and Sealing Machine?

Four Head Ampoule Filling and Sealing Machine's filling Capacity is From 0.5ml to 5ml in single dose.

What are the power requirements for the Four Head Ampoule Filling and Sealing Machine?

Four Head Ampoule Filling and Sealing Machine's power Require is 1 H.P., 380 Volts, 3 Phase, 50 Hz (4 Wire Systems) OR 1 H.P., 220 Volts, 1 Phase, 50 Hz OR Customised.

What are the dimensions of the Four Head Ampoule Filling and Sealing Machine?

Four Head Ampoule Filling and Sealing Machine's over All Dimensions is 1050mm (L) X 800mm (W) X 1000mm (H).

How much does the Four Head Ampoule Filling and Sealing Machine weigh?

Four Head Ampoule Filling and Sealing Machine's net Weight is 285 Kgs.

Is the Four Head Ampoule Filling and Sealing Machine built to pharmaceutical industry standards?

Yes — it is built to cGMP standards.
