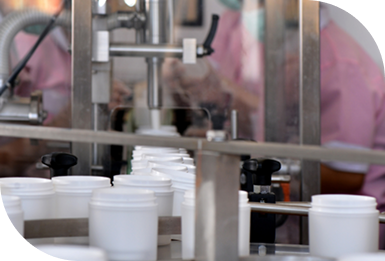

Load Cell Based Liquid Filling Machine
Description
The Load Cell Based Filling Machine is an advanced weight-driven filling system designed to achieve precise and consistent filling of edible oils, lubricants, and specialty oils. Unlike conventional volume-based fillers, this machine relies on high-sensitivity load cells to measure product by weight, eliminating variations caused by viscosity, temperature, or container irregularities. The Load Cell Oil Filling Machine is a state-of-the-art equipment designed for precision filling of various types of oils. This machine utilizes load cell technology to accurately measure the weight of the oil being filled, ensuring precise and consistent filling every time.
With its advanced features, the Load Cell Oil Filling Machine offers several advantages. First and foremost, it ensures accuracy in filling volumes, eliminating the risk of underfilling or overfilling. This precision is crucial for maintaining product quality and meeting regulatory standards.
Features of Load Cell Based Liquid Filling Machine
- High accuracy filling due to load cell feedback.
- Two-speed filling (coarse + fine) to minimize spillage.
- Automatic tare and zero adjustment for every cycle.
- No container - no fill and anti-drip nozzle system.
- Recipe management for quick product changeovers.
- CIP/SIP compatibility (for food/pharma applications).
- Option for net-weight filling or gross-weight filling.
Load Cell Based Liquid Filling Machine Technical Specification
| Filling Method: | Weight-based using load cells |
|---|---|
| Output Speed: | 10 – 60 containers per minute (depends on volume and number of heads) |
| Filling Range: | 100 ml to 30 liters (customizable) |
| Accuracy: | ±0.1 – 0.5% of set volume (high precision) |
| No. of Filling Heads: | 1, 2, 4, 6, 8, 12 heads (customizable) |
| Load Cell Capacity: | 5 – 50 kg (depending on application) |
| Container Diameter: | 50 – 400 mm (adjustable) |
| Container Height: | 100 – 600 mm (adjustable) |
Material of Construction:
| Contact parts: | SS316 (pharma/food-grade) |
|---|---|
| Non-contact parts: | SS304 / MS powder-coated |
| Power Supply: | 230V/415V AC, 50/60 Hz |
| Air Supply: | 6 bar (for pneumatic actuators) |
| Control System: | PLC with HMI interface, data logging, and weight calibration |
| Conveyor Speed: | Adjustable (variable frequency drive - VFD) |
