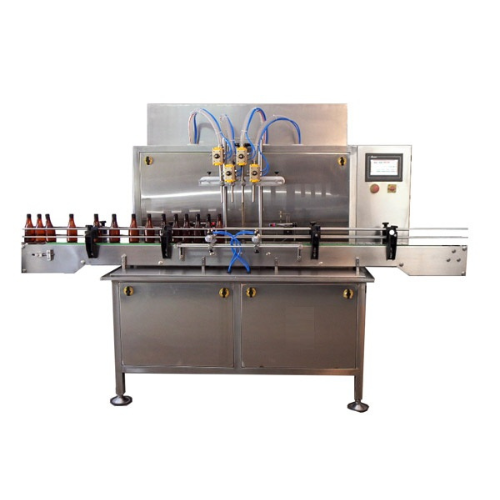

Servo Based Gear Pump Filling Machine
Harsiddh Automatic servo based gear pump filling machine is used to fill water based and various types of viscous, semi-viscous products including lubricant (engine) oil, automobile oil, hair and cooking oil etc. It delivers a production output of 10 to 150 / Minute (Depends on Fill Capacity or viscosity of Liquids); and is built to CE certified and GMP standards. Request a detailed specification sheet or a quote from Harsiddh Engineering.
Description
Harsiddh Automatic servo based gear pump filling machine is used to fill water based and various types of viscous, semi-viscous products including lubricant (engine) oil, automobile oil, hair and cooking oil etc. our electronic servo based fillers (Servo Based Gear Pump & Viscous Filling Machine) are used in filling other viscous or non-viscous liquid material like Honey, Petroleum Jelly, Grease, Lotion, Creams, Paints, distemper, balms etc.
The top loading in servo based gear pump filling machine is manufactured with high durable stainless steel. The servo based gear pump liquid filling machine is equipped with quality conveyor belt, storage tank with 100 liters capacity, servo gear motors, PLC with touch screen HMI, pumps etc. The equipment can be customized as per the industrial need for various types of filling capacity and precision. This auto fillers (servo based) auto indexing the container below the filling nozzles, to fill the viscous products without any input.
It follows GMP standards available in one, two, four, six, eight, ten, twelve filling nozzles operating with very low maintenance. It works on “no container, no filling” principle, thus in the absence of container, it stops its feeding operation. Our Servo based gear pump Filler Machine carries CE certification. It is suitable for all types of glass or PET containers for round, flat, oval shape and jerry can fill the containers from 10ml to 20000ml in single dose based on the type and size of the container.
Features of Servo Based Gear Pump Filling Machines
- GMP model.
- Suitable for fill 10ml to 20000ml / 10 grams to 20 kgs.
- Available in 1/2/4/6/8/10/12 nozzles filling at a time.
- Easy to operating, user friendly machine.
- PLC with Touch screen HMI .
- Servo Motors.
- SS 316 gear pump.
- Equipped with in feed turn table for round container feed automatically.
- All pneumatic components of Festo/Janatics make.
- Maintenance free and long lasting.
- PLC controlled .
- Different output from 10 to 150 container per minute.
Servo Based Gear Pump and Viscous Filling Machine Technical Specification
| Model No : | Servo Based Gear Pump Filling Machine HESF – 1 / 2 / 4 / 6 / 8 / 10 / 12 |
|---|---|
| Container Types | Glass Or Pet (All Type of Container) |
| Container Shapes | Round, Flat, Oval (All Types of Shapes) |
| Filling Capacity | From 10ml to 20000ml in single dose |
| Filling Type | Electronics Servo Based Filling Systems |
| Material Storage | Stainless Steel Storage Tank Capacity of 100 Litres OR made as per customer requirements |
| Contact Parts | Stainless Steel AISI 316 (Storage Tank, Filling Nozzles & Pumps) |
| Output / Minute | 10 to 150 / Minute (Depends on Fill Capacity or viscosity of Liquids) |
| No. of Filling Heads | As per requirements |
| Machine Direction | Left to right OR customized |
| Dimensions (example) | 2550mm (L) X 1000mm (W) (4 nozzle machine) |
Frequently Asked Questions
What materials are the Servo Based Gear Pump Filling Machine's contact parts made from?
Servo Based Gear Pump Filling Machine's material Storage is Stainless Steel Storage Tank Capacity of 100 Litres OR made as per customer requirements.
What production output can I expect from the Servo Based Gear Pump Filling Machine?
Servo Based Gear Pump Filling Machine's filling Capacity is From 10ml to 20000ml in single dose.
What are the dimensions of the Servo Based Gear Pump Filling Machine?
Servo Based Gear Pump Filling Machine's dimensions (example) is 2550mm (L) X 1000mm (W) (4 nozzle machine).
Is the Servo Based Gear Pump Filling Machine built to pharmaceutical industry standards?
Yes — it is built to CE certified and GMP standards.
