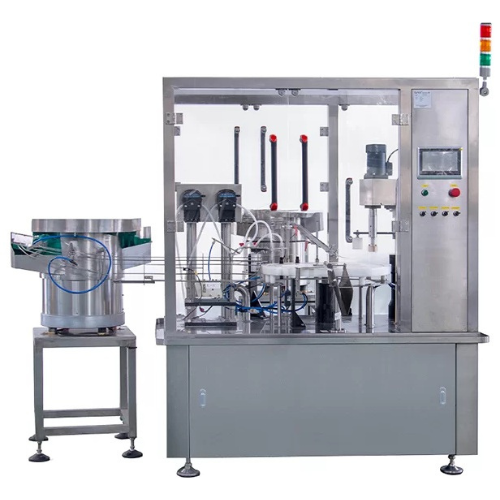

Peristaltic Based Liquid Filling Machine
Description
A peristaltic pump liquid filling machine is designed for high-precision, contamination-free filling of low to medium-viscosity liquids. It is widely used in pharmaceuticals, biotechnology, diagnostics, cosmetics, and food industries because the liquid only contacts the inner tube of the pump, ensuring sterility and easy cleaning. The liquid is drawn into a flexible silicone or Teflon tube by the rotating rollers of a peristaltic pump. As the rollers compress the tube, they push the liquid forward into the filling nozzle. Filling volume is controlled by pump rotation speed and number of rotations, managed by a PLC/servo system. Tubing can be quickly replaced for product changeovers, eliminating cross-contamination risk.
Features of Peristaltic Based Liquid Filling Machine
- No product contact with machine parts – only tubing.
- Easy changeover – replace tubing for different products.
- Ideal for sterile/cleanroom environments.
- Variable speed control for different viscosities.
- No container – no fill and anti-drip shut-off nozzles.
- Low maintenance – no seals, pistons, or valves to wear.
- Suitable for micro-filling applications (as low as 0.5 ml).
Peristaltic Based Liquid Filling Machine Technical Specification
| Filling Method: | Peristaltic pump (contact-free, product inside disposable tubing) |
|---|---|
| Output Speed: | 10 – 120 bottles/min (depending on volume and no. of heads) |
| Filling Range: | 0.5 ml to 1000 ml (per head, depending on pump size) |
| Filling Accuracy: | ±0.2 – 0.5% (high precision) |
| No. of Filling Heads: | 1, 2, 4, 6, 8, 12 heads (customizable) |
| Container Diameter: | 15 – 100 mm (adjustable) |
| Container Height: | 30 – 250 mm (adjustable) |
| Pump Type: | Servo-controlled peristaltic pump |
| Tube Material: | Silicone, Santoprene, or PTFE (pharma/food grade) |
Material of Construction:
| Contact parts: | Disposable tubing only (Silicone/PTFE) |
|---|---|
| Frame: | SS304/SS316 (GMP-compliant) |
| Power Supply: | 230V AC, Single Phase, 50/60 Hz |
| Control System: | PLC with HMI touch screen, recipe storage, and alarm display |
| Air Requirement: | Minimal (for optional pneumatic actuators) |
